Rewritable passive anti-metal rfid tag 860-925Mhz 6C tag SM163 for steel management

Product Code: SM163

Availability: In stock

Rewritable passive anti-metal rfid tag 860-925Mhz 6C tag SM163 for steel management

Be the first to review this product

$3.00
  • Buy 100 for $2.30 each and save 24%

Ships to: Worldwide FREE SHIPPING

OR
Share |
Description

Details

Product description

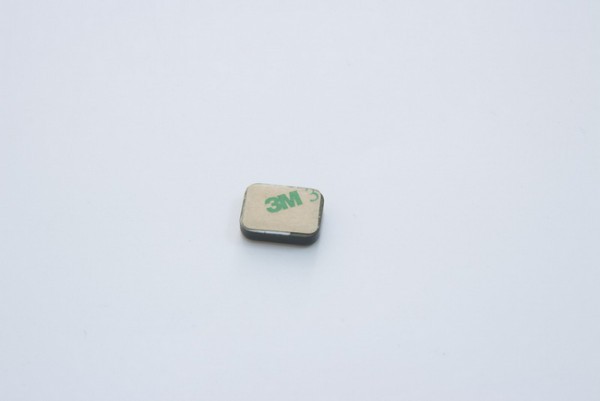

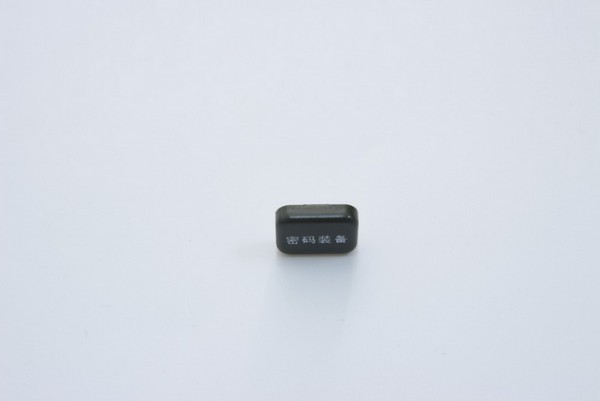

This tag is designed on FR-4 base material. It solves the problem that tags can not be attached to metal surface(Reading distance even will be father when it is attached to metal surface). At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 860960MHz (It can be used worldwide). Each tag has a unique ID and stores user data. It’s used in Warehouse logistics management, IT asset management, inventory management, asset management, automotive component tracking, industrial manufacturing, etc.

Physical Features:



Product Model

 RCP8005

Material

 FR-4

Dimensions

36×13×2.7mm

Weight

   2.7g

Color

Black (optional)

Working Temperature

 -40℃150℃

RFID Features:



Protocol

EPC C1G2 (ISO18000-6C)

Frequency

 860960MHz

Chip

ALIEN HIGGS 3 (optional)

EPC Memory

96 bits, maximum 480 bits

User Memory

 512 bits

Read Range

Stationary reader: Over 2.5m (30dBm)

Handheld reader

Over 1m (28dBm)

Other Features:

Environmental

ROHS compliant

Data storage

>10 years

Re-write

100,000 times

Fixture

3M adhesive or rivet

Customization

 Company logo print

Packaging & Delivery

Packaging Details:

MDA12 Screw RFID Tag RFID Metal ID Tag UHF Anti-metal Tags
Each one in an individual OPP bag, and each 200pcs in white box then 2000pcs per carton or customized

Delivery Detail:

6 -9 days
