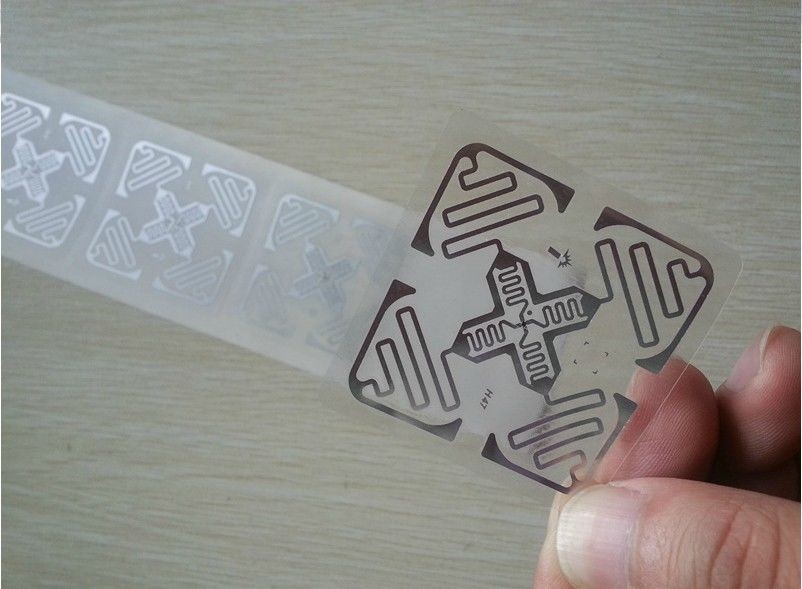

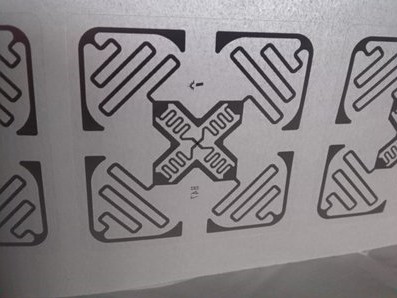

Impinj Inlay H47 dry tag UHF RFID TAG passive tag for personnel management,materials management,supply chain management

Product Code: H47

Availability: In stock

Impinj Inlay H47 dry tag UHF RFID TAG passive tag for personnel management,materials management,supply chain management

Be the first to review this product

$0.35

Ships to: Worldwide FREE SHIPPING

OR
Share |
Description

Details

Product Introduction:
1.Wet Inlay Length 1:50.00+/-0.20mm
2.Wet Inlay Width 2:50.00+/-0.20mm
3.Wet Inlay Corner Radius 3:R=2.50+/-0.20mm
4.Liner Width 20:60.00+/-1.00mm
5.Core ID 21:3 inch (76.20+/-0.50mm)
6.Roll OD 22:<=210.00mm
7.Antenna Length 28:44.00+/-0.20mm
8.Antenna Width 29:44.00+/-0.20mm
9.Wet Inlay Gap 30:2.39+/-0.30mm
10.Wet Inlay Pitch 31:52.39+/-0.30mm
11.Antenna to PET (top) 32:3.00+/-1.50mm
12.Antenna to PET (buttom) 33:3.00+/-1.50mm
13.Antenna to PET (left) 34:3.00+/-1.50mm
14.Antenna to PET (right) 35:3.00+/-1.50mm
15.Wet Inlay Edge to Liner Edge (left) 36:5.00+/-2.00mm
16.Wet Inlay Edge to Liner Edge (right) 37:5.00+/-2.00mm
17.Structure:
18.EPC:up to 496 bits
19.TID:48 bits
20.Unique TID:48 bits
21.Password:32 bits access;32 bits kill
22.User:128 bits
23.Frequency:860-960MHz
24.Operating Mode:passive
25.IC Life:100,000 programming cycles,50 years data retention
26.ESD Voltage Immunity:2000V
27.Adhesive Application Temperature/Humidity:10~40 celsius/20%-80%
28.Operating Temperature:-20~50 celsius
