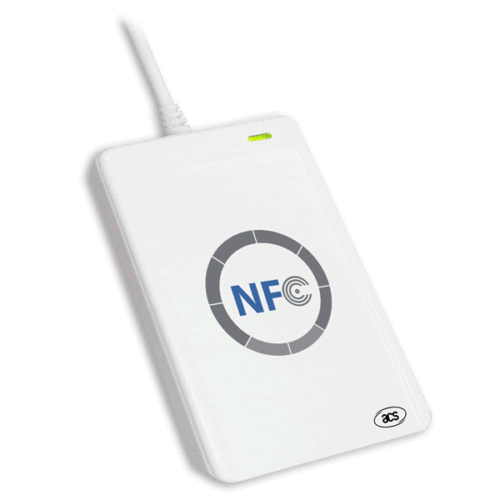

NFC reader SR1056 for e-Payment,Access Control,Loyalty Program

Product Code: SR1056

Availability: In stock

NFC reader SR1056 for e-Payment,Access Control,Loyalty Program

Be the first to review this product

$59.00

Ships to: Worldwide FREE SHIPPING

OR
Share |
Description

Details

Features:

CCID-compliant
PC/SC-compliant
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only 1 tag is accessed at any time)
User-controllable bi-color LED
User-controllable buzzer

Applications:

e-Government
e-Banking and e-Payment
e-Healthcare
Transportation
Network Security
Access Control
Loyalty Program

Technical Specifications :



Dimensions

98mm(L) x 65mm(W) x 12.8mm(H)

Weight

70g

Interface

USB Full Speed

Operating Distance

Up to 50mm (depends on the tag type)

Supply Voltage

Regulated    5V DC

Supply Current

200mA(operating); 50mA (standby); 100mA (normal)

Operating Temperature

0-50°C

Operating Frequency

13.56    MHz

Smart Card Interface Support

ISO14443    Type A & B

Mifare

FeliCa

4 types of NFC (ISO/IEC18092) tags

Compliance/Certifications

PC/SC,CCID,CE,FCC,VCCI,RoHS Compliant,USB Full Speed

Microsoft ? WHQL: 2000, Server 2003, XP,Vista, Server 2008, Server 2008 R2, 7

Operating    System Support

Win98, WinME, Win2000, Win XP, Win Vista, Win7, Win Server 2003, Win Server    2008

Win XP x64, Win Vista x64, Win 7 x64, Win    Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64

Windows CE 5.0

Mac

Linux
