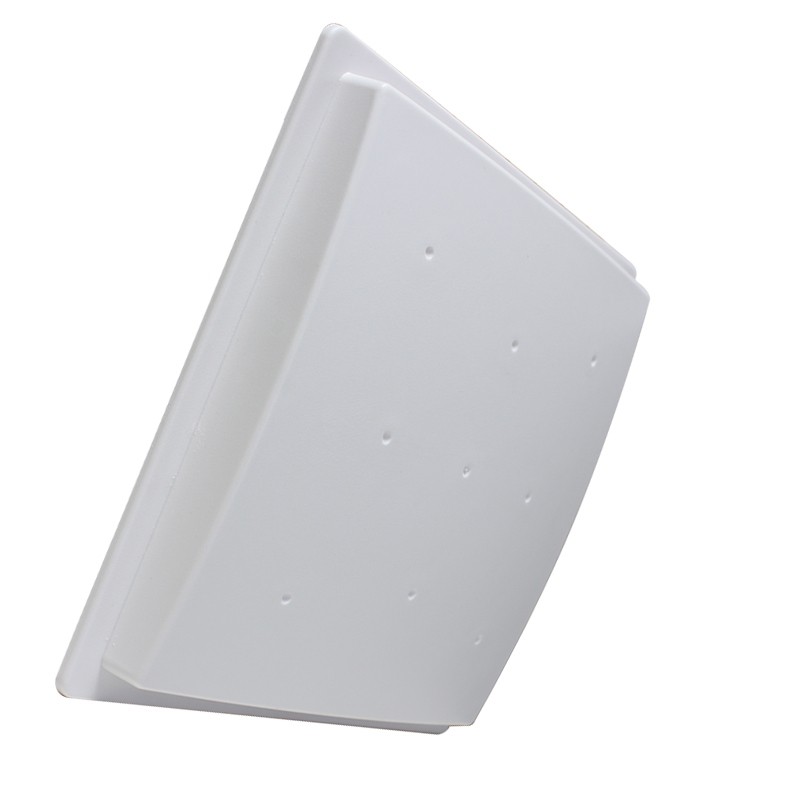

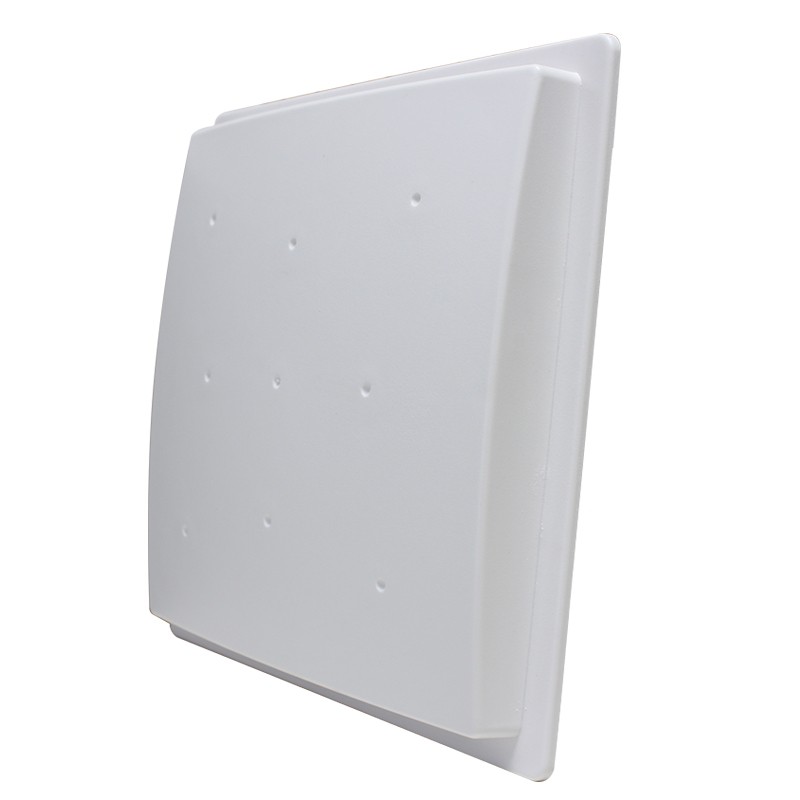

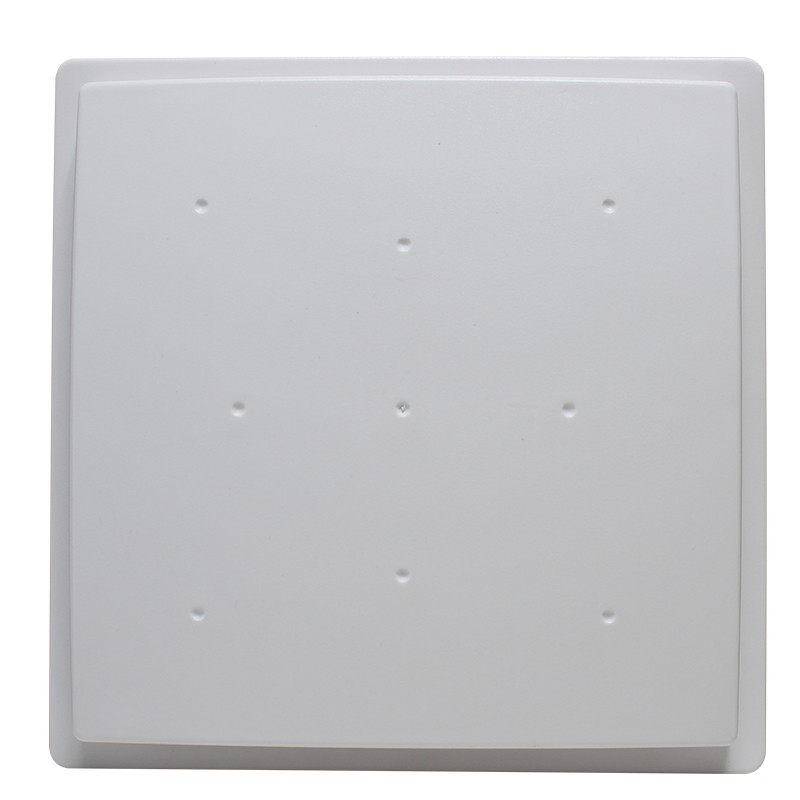

R781 UHF RFID Reader 6m Long Range Outdoor IP67 8dbi Antenna USB RS232/RS485/Wiegand Output UHF Integrated Reader

R781 UHF RFID Reader 6m Long Range Outdoor IP67 8dbi Antenna USB RS232/RS485/Wiegand Output UHF Integrated Reader

The UHF RFID Middle Range Reader is a high performance UHF integrated reader . Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

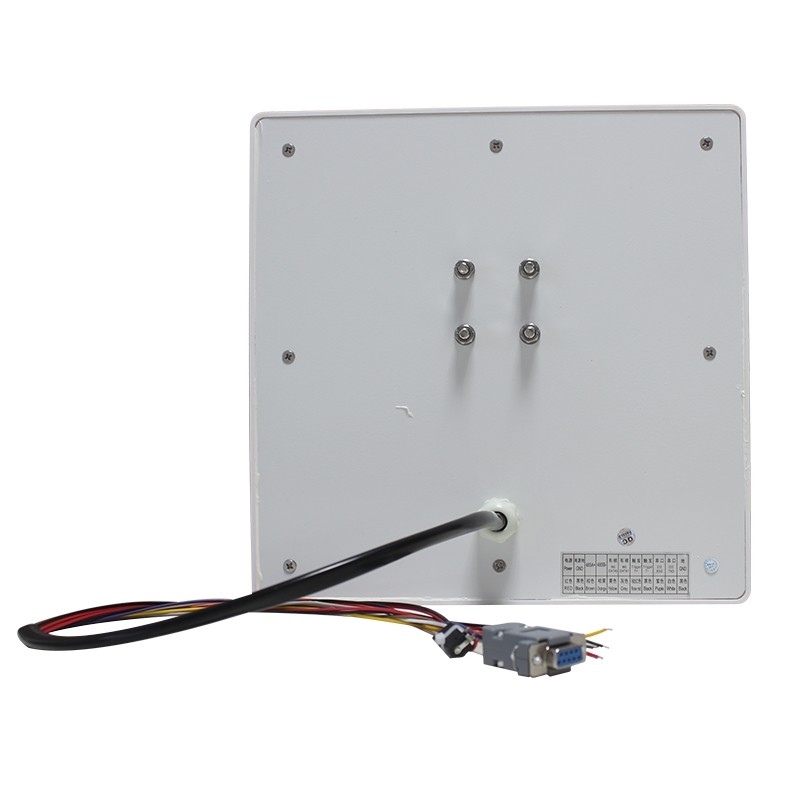

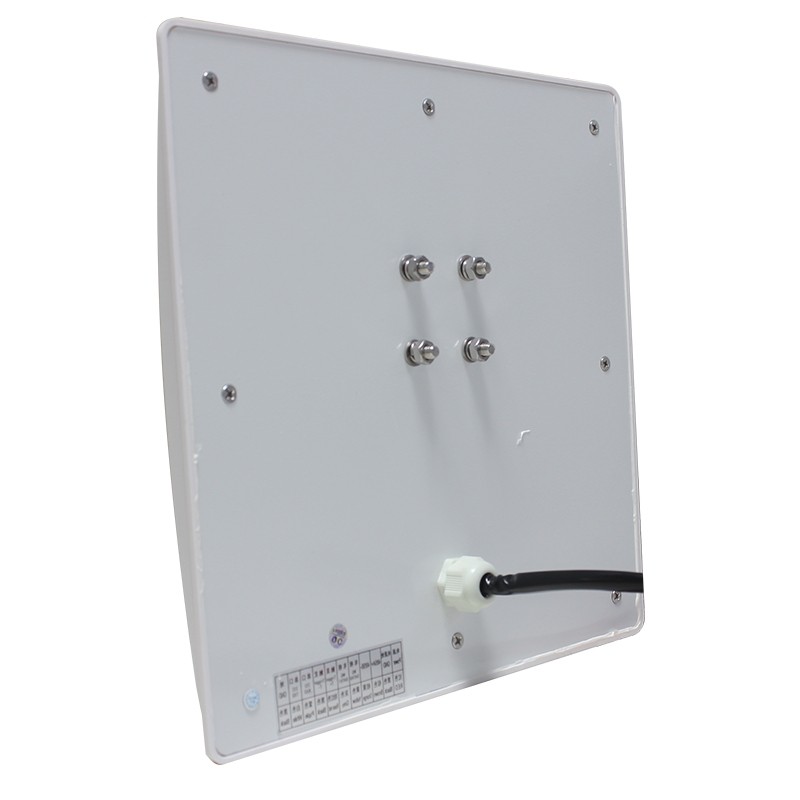

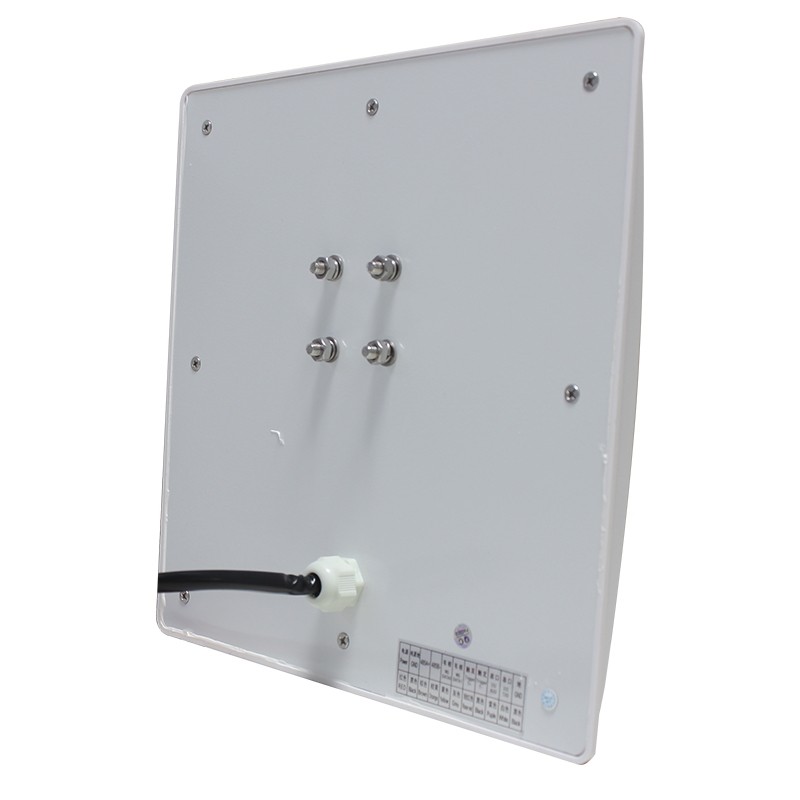

Interface Red:+9V Black:GND Green:RS232 TXD White:RS232 RXD Brown:GND Yellow:Wiegand DATA0 Grey:Trigger input（TTL level ） Blue:Wiegand DATA1 Purple:RS485 R+ Orange:RS485 R- * Effective distance depends on antenna, tag and environment.

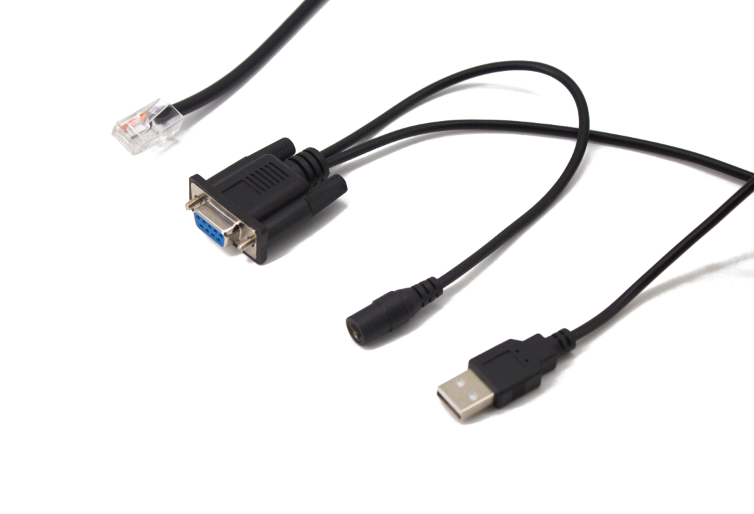

Pictures Interfaces(RS232,RS485,Wiegand26/34) Power Supply : SYMBOL :VCC MIN :8 TYP: 9 MAX:12 UNIT:V Current Dissipation: SYMBOL:IC TYP: 350 MAX:650 UNIT:mA Frequency : SYMBOL :FREQ MIN :860 TYP: 865~868 ,902~928 MAX:960 UNIT:m-HZ Effective Distance: SYMBOL :DIS MIN :300 TYP: 500 MAX:600 UNIT:CM 9662 read labels, we tested the longest distance is 6 meters, label size and dimensions of the different antennas will affect the reading distance.
