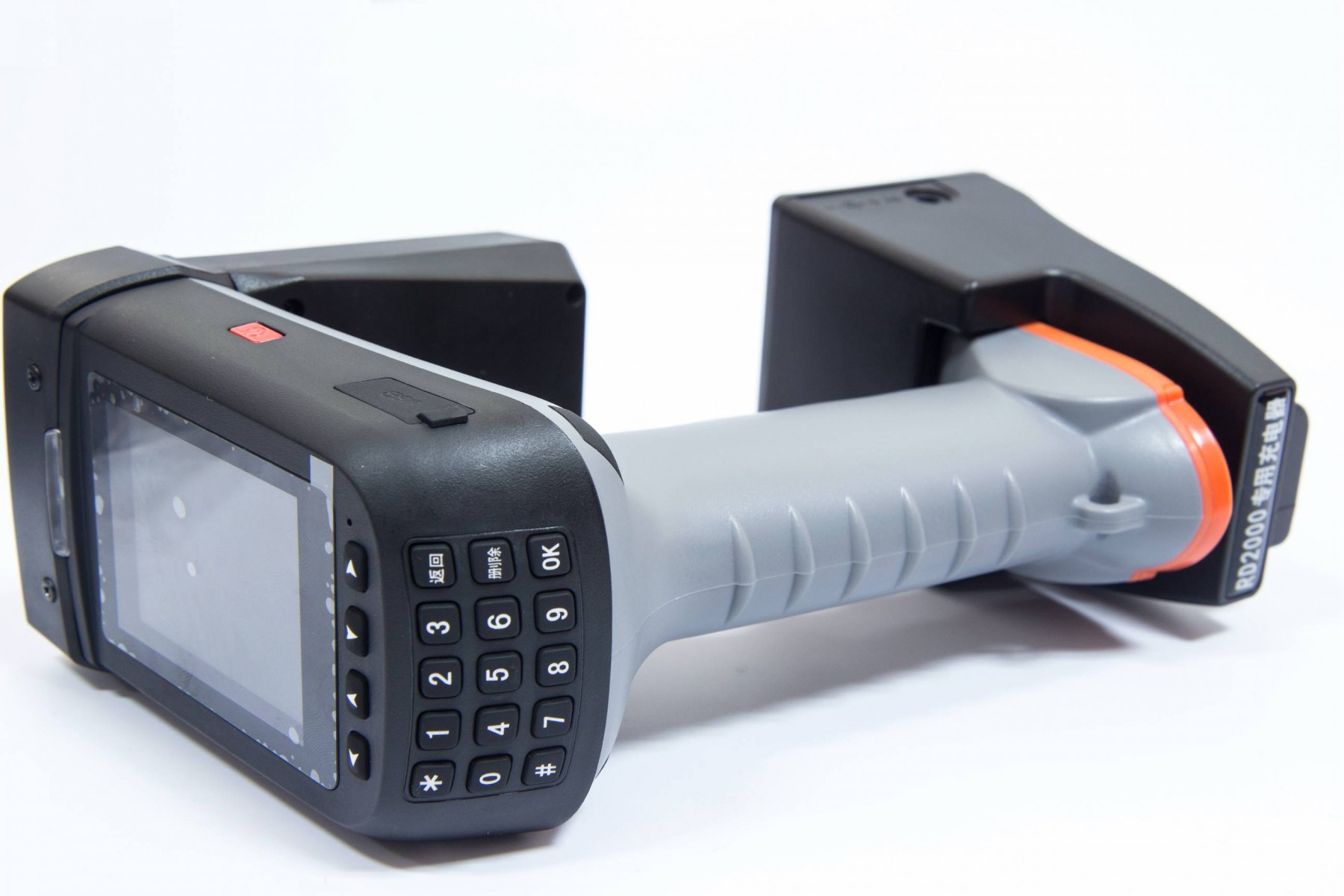

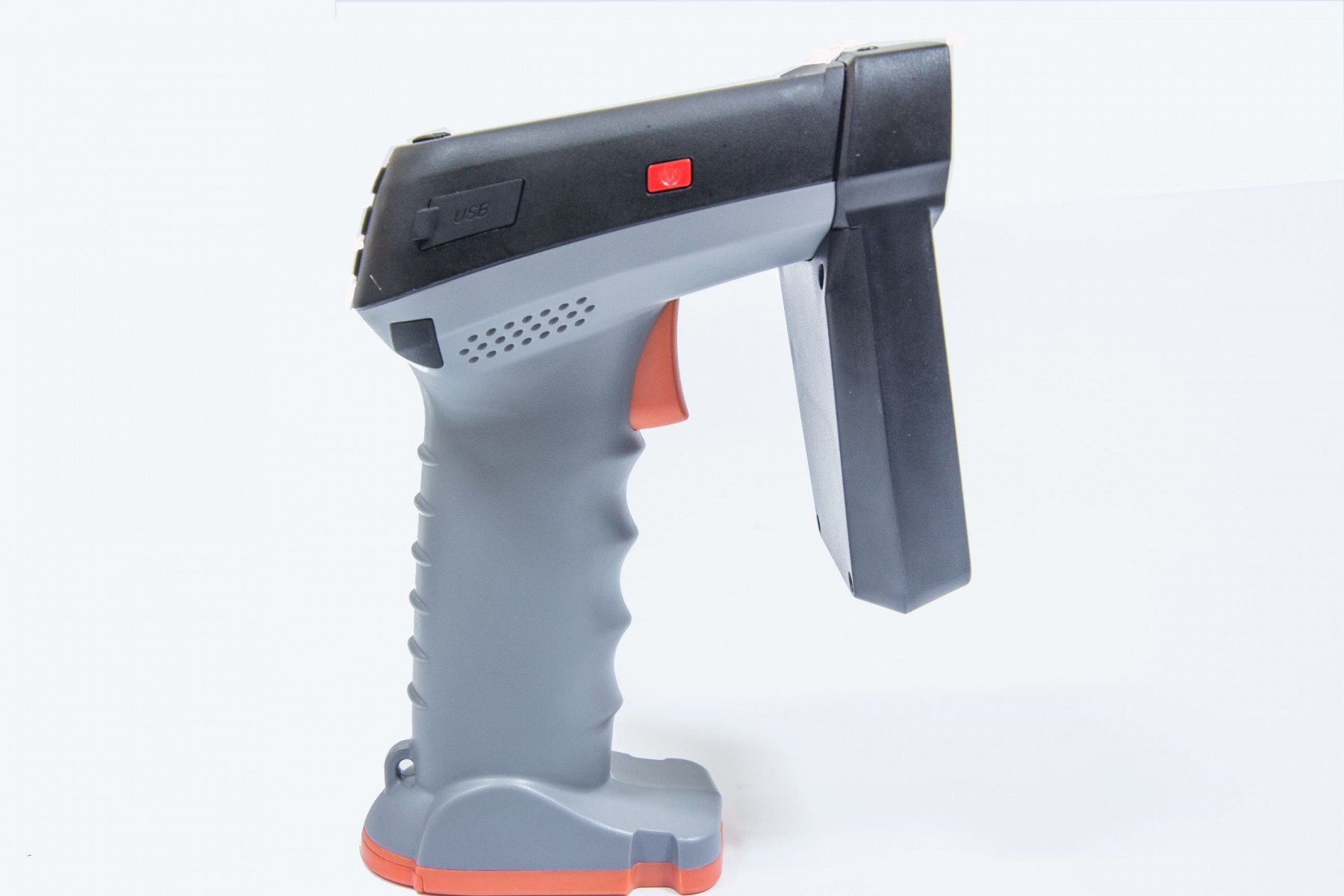

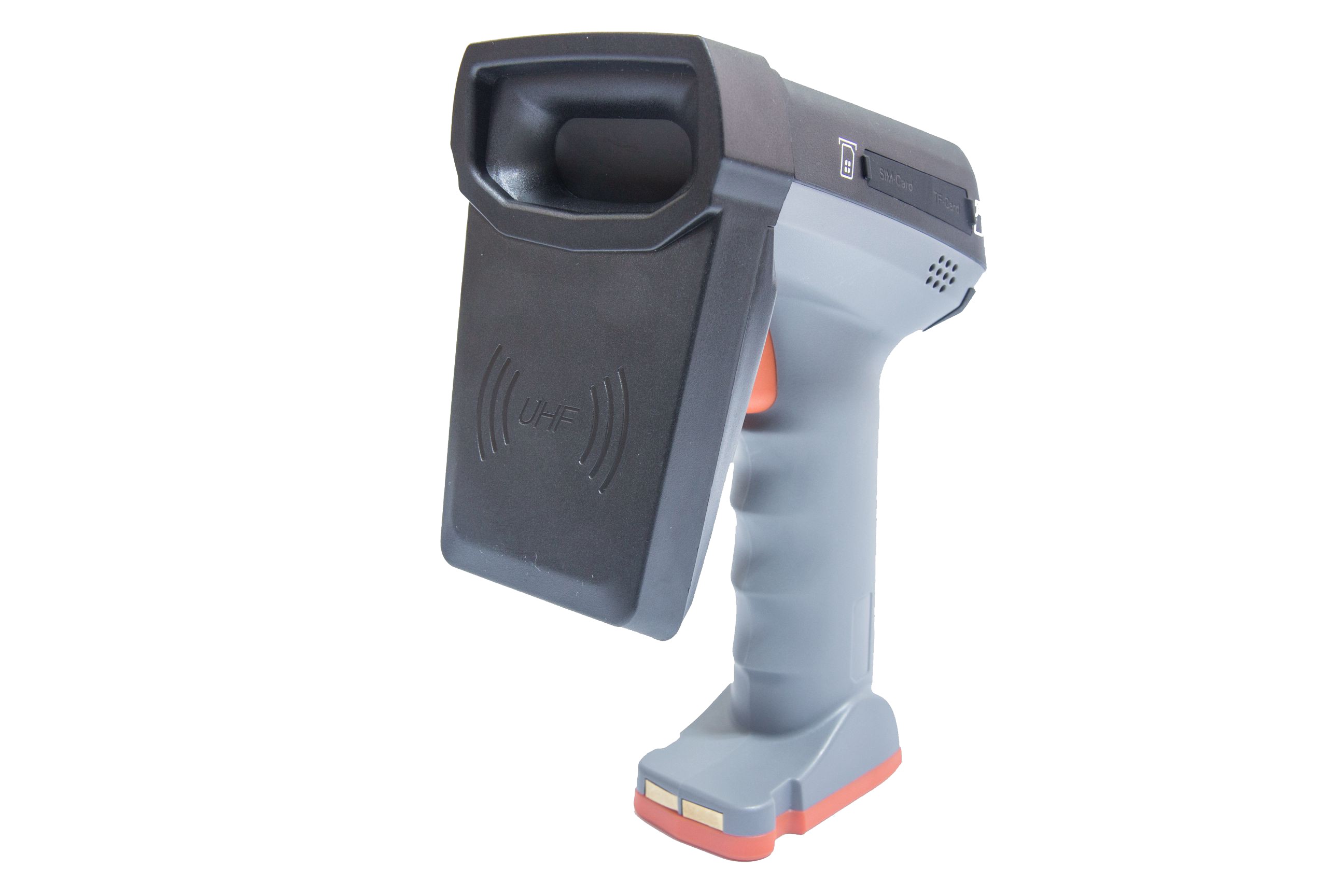

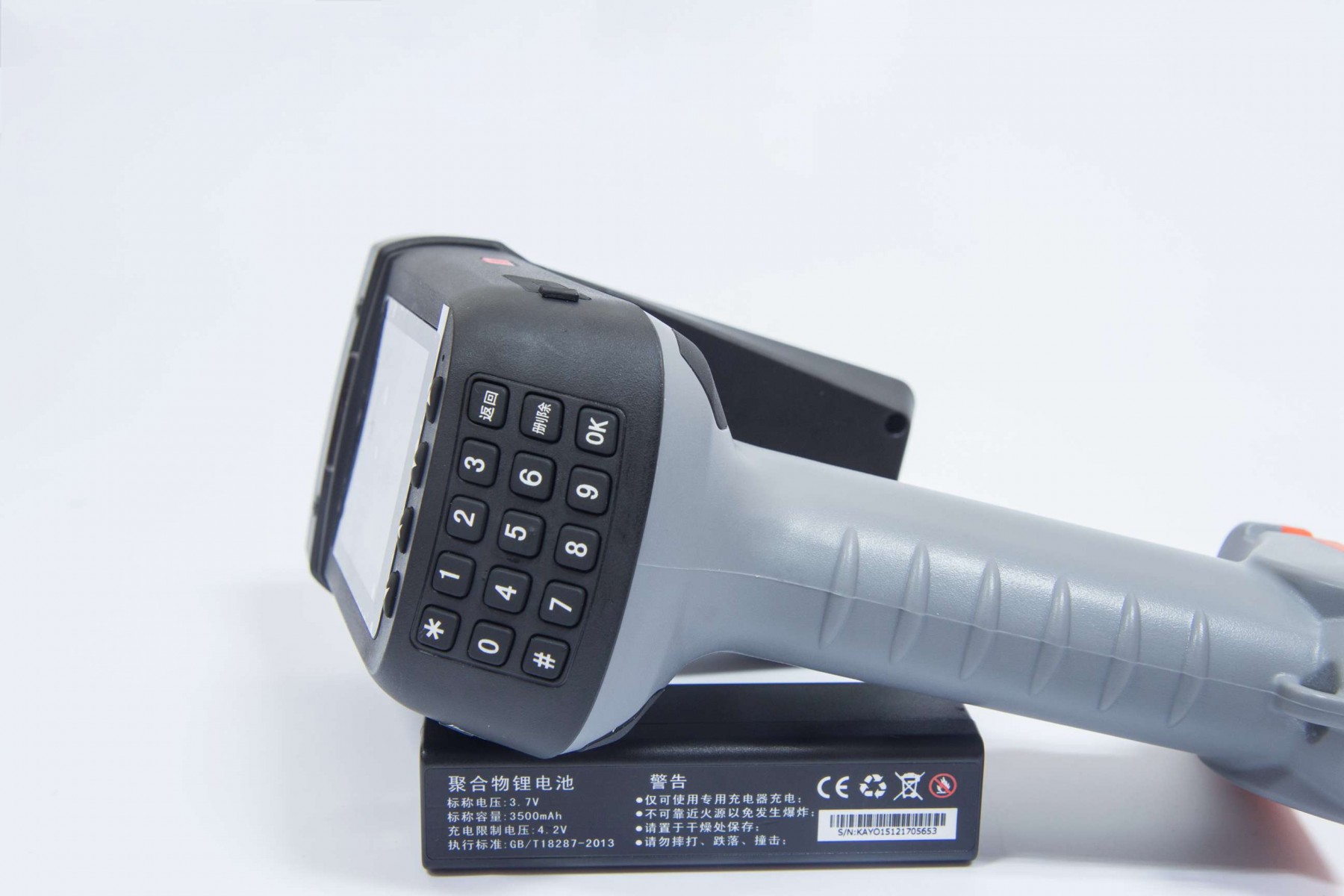

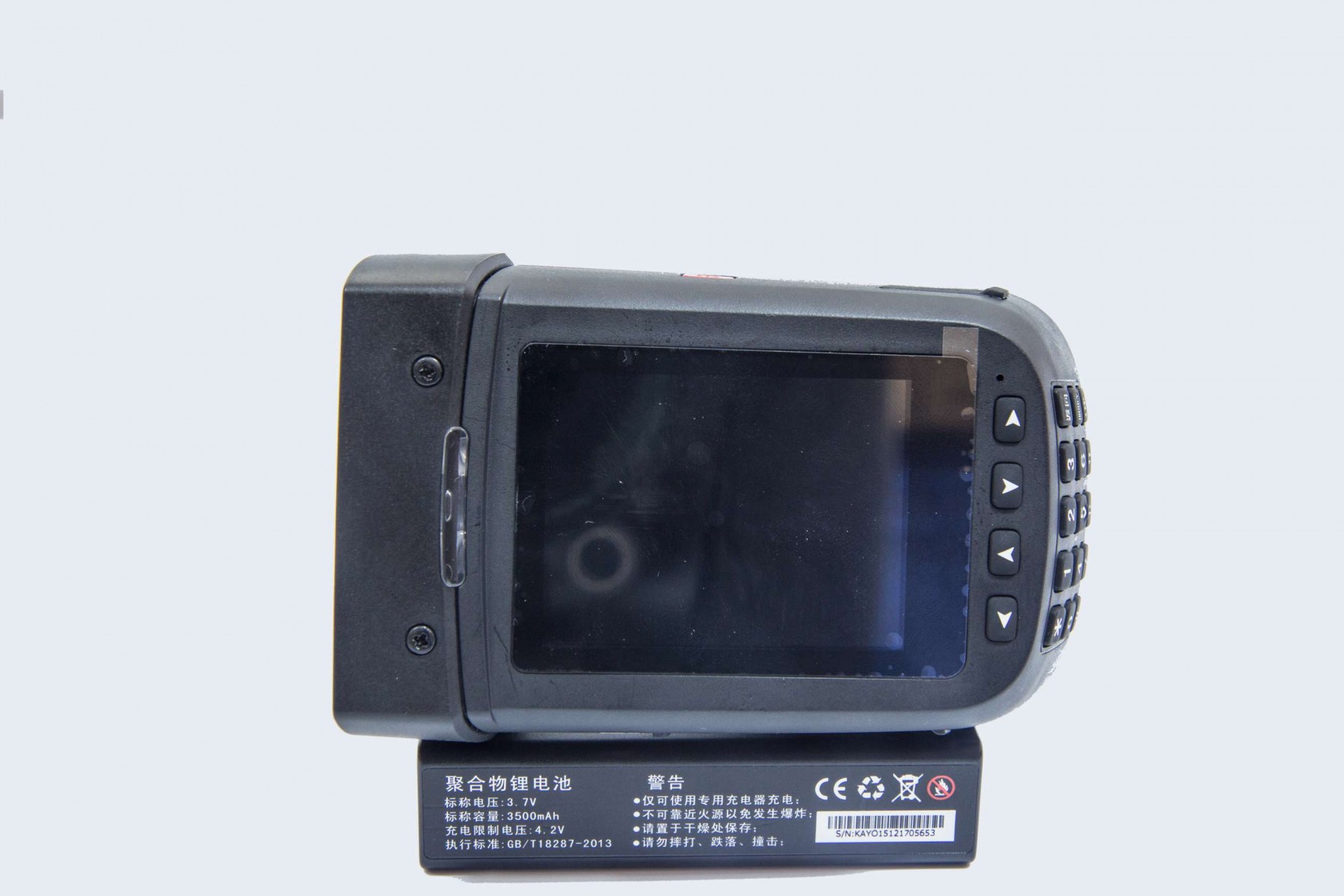

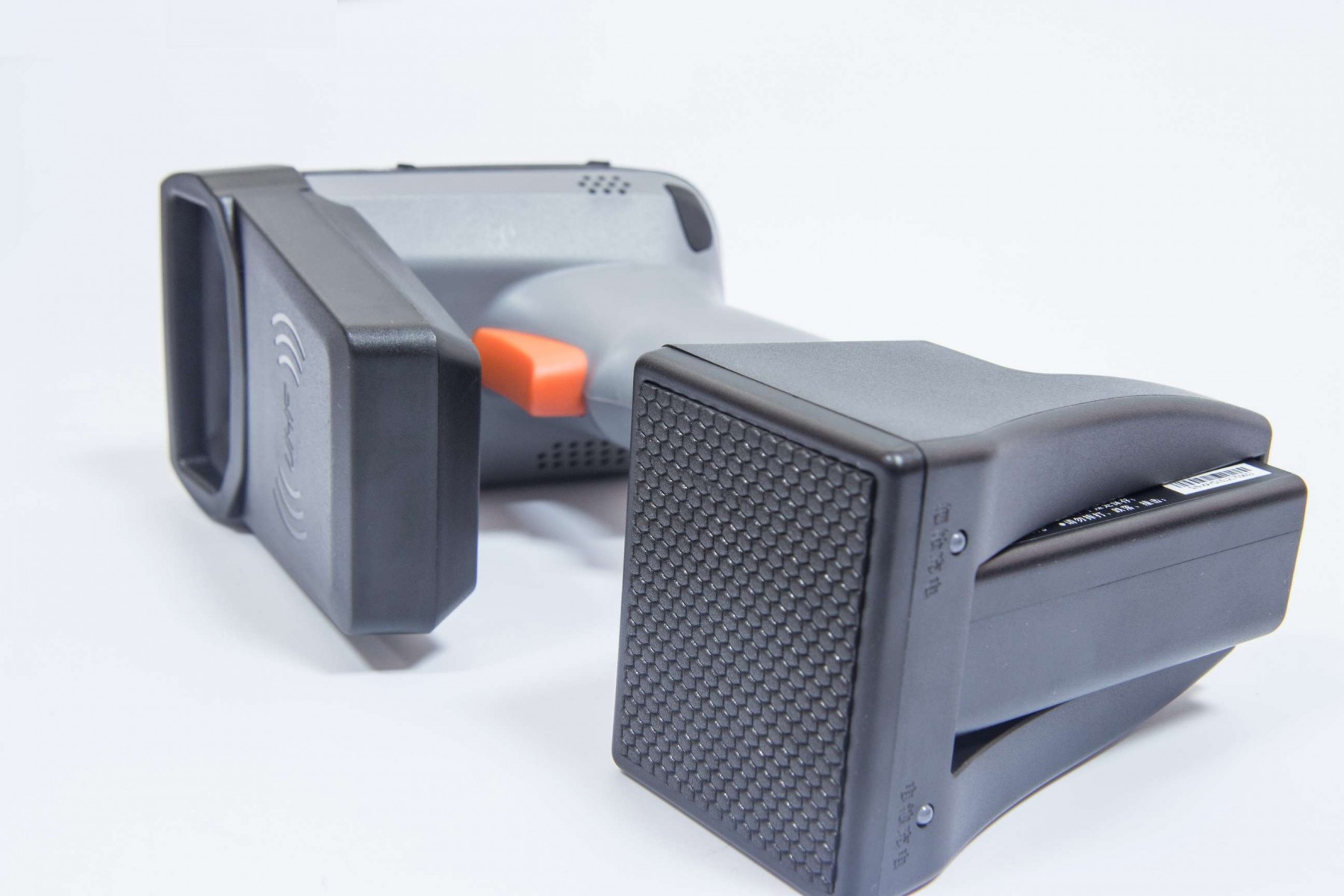

UHF Handheld RFID Reader 865-868Mhz,902-925Mhz SR2000 FOR Vehicle Access Control Management, Personnel Access Control Management

Product Code: SR2000

Availability: In stock

UHF Handheld RFID Reader 865-868Mhz,902-925Mhz SR2000 FOR Vehicle Access Control Management, Personnel Access Control Management

Be the first to review this product

$560.00

Ships to: Worldwide FREE SHIPPING

OR
Share |
Description

Details

General parameters







Appearance

Tablet

Size

172(L) * 81(W) * 37(H)mm

Hardware parameters

CPU

1Ghz@2 core

Network Type 1

Wifi 3G 2GGSM 900/1800

Frequency

800MHz/1900MHz

Wireless Transmission Rate

1.8Mbps/3.1 Mbps

Network Type 2(without same time)

WIFI,bluetooth,WCDMAGSM/GPRS

Frequency

WCDMA/HSDPA/HSUPA 850/900/1900/2100MHz

GSM/GPRS/EDGE 850/900/1800/1900MHz

Wireless Transmission Rate

HSDPA 384K 7.2M

HSUPA 5.76M 7.2M

Slot(optional)

WCDMA/CDMA

RAM

512MB

ROM

4GB

Scale Storage

Micro SD, support 32G max

U Disk

SupportMicroSD

Home Screen

Motherboard supports 4.0MM WVGA IPS TFT

Resolution

240*320 TFT

Touch Screen

Support Touch panel, Resistive Screen(support Screen Calibration)

Speaker Quantity

Single

Camera (rear)

5 million pixels (AF, LED flash lamp, can be used to flashlight)

Bluetooth

Support, 2.1+EDR+A2DP

GPS

Support

UHF(ultrahigh frequency) RFID

Support 860 MHz—960 MHz;
Include the outer folding antenna,a full 180°rotation
Support Protocol :ISO 18000 6c/EPC Class1 Gen2
4DBI antenna;
Read Distance: 0-3m(0-9feet)
Support Tags: Impinj—Monza 3/4/5Alien Tech—Higgs-3/4Philips—UCODE EPC G2/UCODEG2XM/XL

Acceleration Sensor

Support

Vibrating Motor

Support

Data interface

10 pin Mini USB,Support external power supply (5V/500mA) Mic or USB OTG

Battery charging port

Support single charging port

Headphone jack

3.5mm audio interface *1

Hang rope hole

ID-MD design

Antenna

Inbuilt,EVDO can't support receiving diversity

WIFI/WAPI

Support(b/g/n

LED Power indicator

Support three way for reminders with flicker: (Common reminderCall reminderMissed calls reminder)
Support CPU I/O indicator*1
Support Indicator*2 lead to interface

Earphone

Support

Handwriting pen

Built-in

Bar code Scanner

Support 1D red light1D laser2D bar code module

Flashlight

Through Flash lamp to be realize

Ethernet interface

Support static IP and DHCP, and support PPPoE to dial a number and connect to Internet

Serial port

RS232, RS485

PSAM

2pcs

Access condition

Software and hardware testing index reach the access level

Charging Time

9hours(maximum)

Battery

3000mAh Polymer/lithium ion battery;

Standby current is less than 10mAAccording to the actual light driver IC power consumption to decide whether to increase) battery holder adopt lateral way to contact,Battery capacity is about 6000mAh.

Software parameters:

Operating system

Android 4.2

Supporting Language

English and Chinese

Input

Supporting English and Chinese,with writing

GPSone

Supporting CDMA(indoor positioning)
