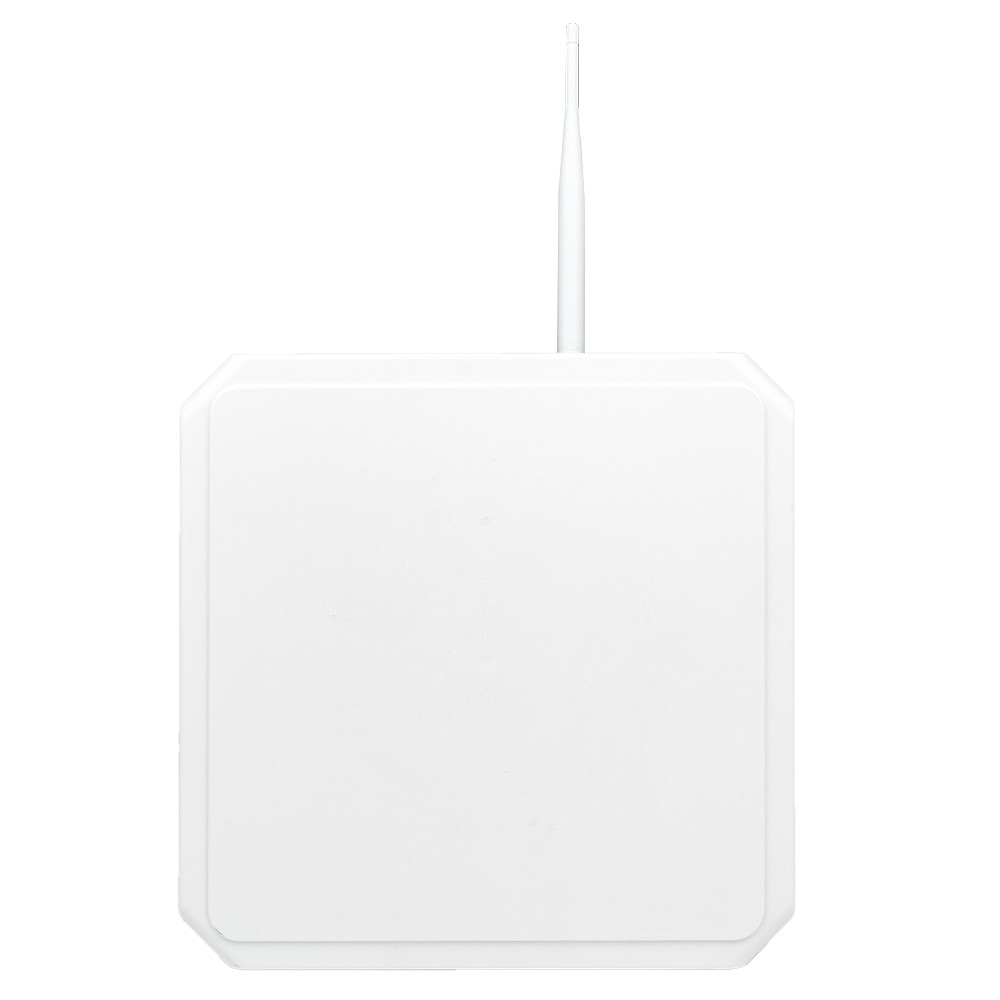

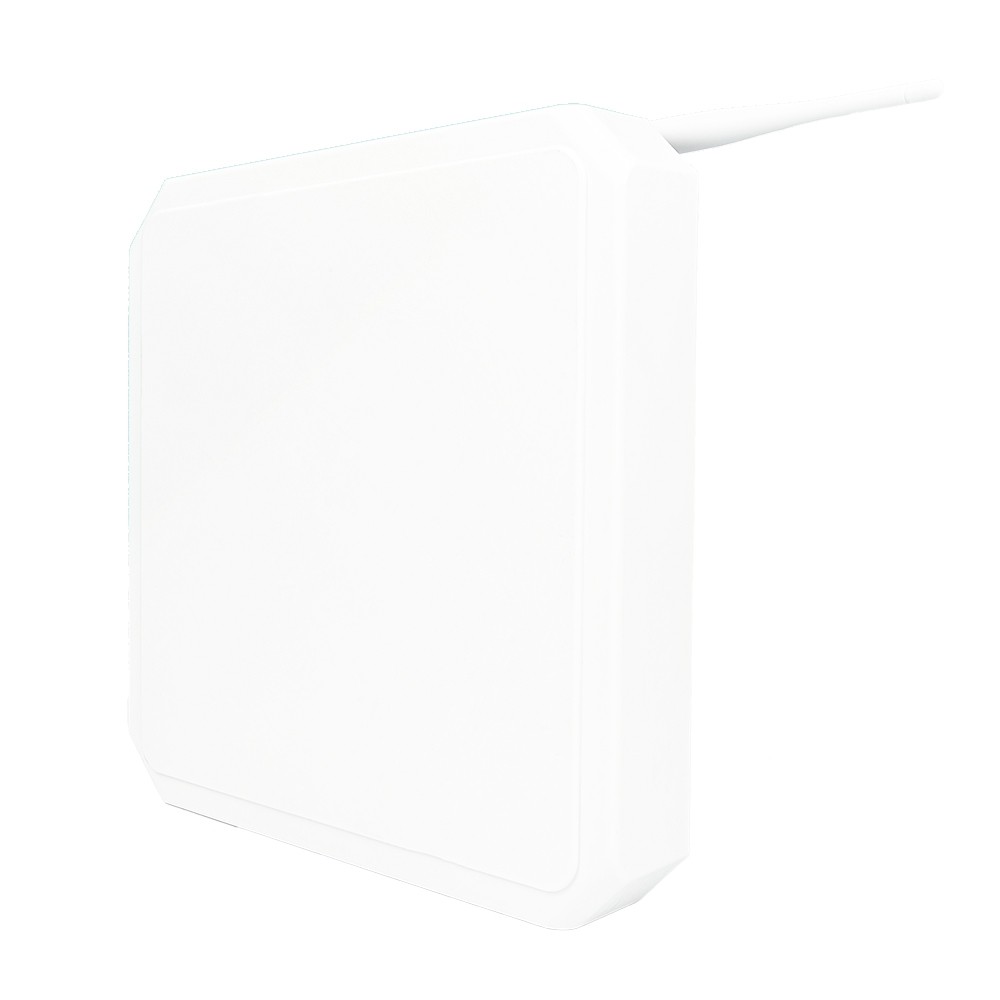

Yanzeo SR891 UHF RFID Reader Long Range 40m IP67 Output UHF Integrated Reader RJ45 WIFI Bluetooth5.0
If you know UDP, you can take a remote test from your place before buying. If need, kindly contact us. Thanks
If need more, better price you have, any questions contact us: market@yanzeo.com
Indoor test: https://www.youtube.com/watch?v=v5AfmG7-By4
Outdoor test: https://www.youtube.com/watch?v=4X40hZiJxo8
Feature
- Long read distance : about 40M.
- Realize 18000-6b / C full protocol function.18000-6b big data one-time read and write.
- Multi-point onboard temperature sensor. Dual backup output power correction.
- High speed polling multiple antennas. The minimum polling time of each antenna is about 25ms.
- 24 hours x 365 days perennial operation without crash.
- The time for reading 216 bytes at one time is < 500ms. Write 216 bytes at a time < 3.5 seconds.
- RF chip adopts R2000.
- Dual CPU architecture design.
Technical Specification
OPERATIONAL PARAMETER
Air interface protocol
EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C ; ISO 18000-6B
Receiving sensitivity
< -85 dBm
Inventory tag peak speed
>700 sheets / sec
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208 with & without LBT regulations
Work area support
Chinese Mainland
Japan
Korea
Operating spectrum range
860Mhz – 960Mhz
Label cache
1000 labels @ 96 bit EPC
Working mode
Stand alone / intensive (DRM)
Communication interface
RJ45；WiFi ；Bluetooth 4.0(low power consumption)

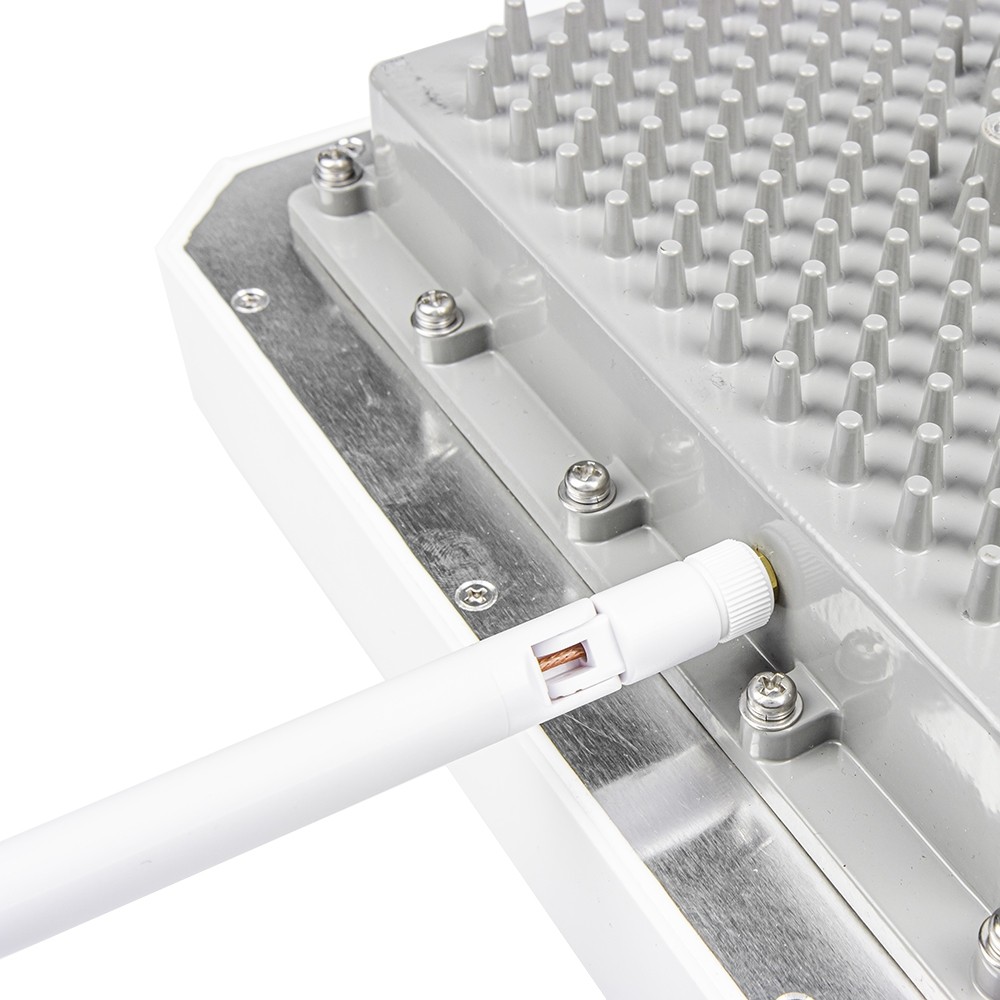

Antenna interface
SMA-J / TNC

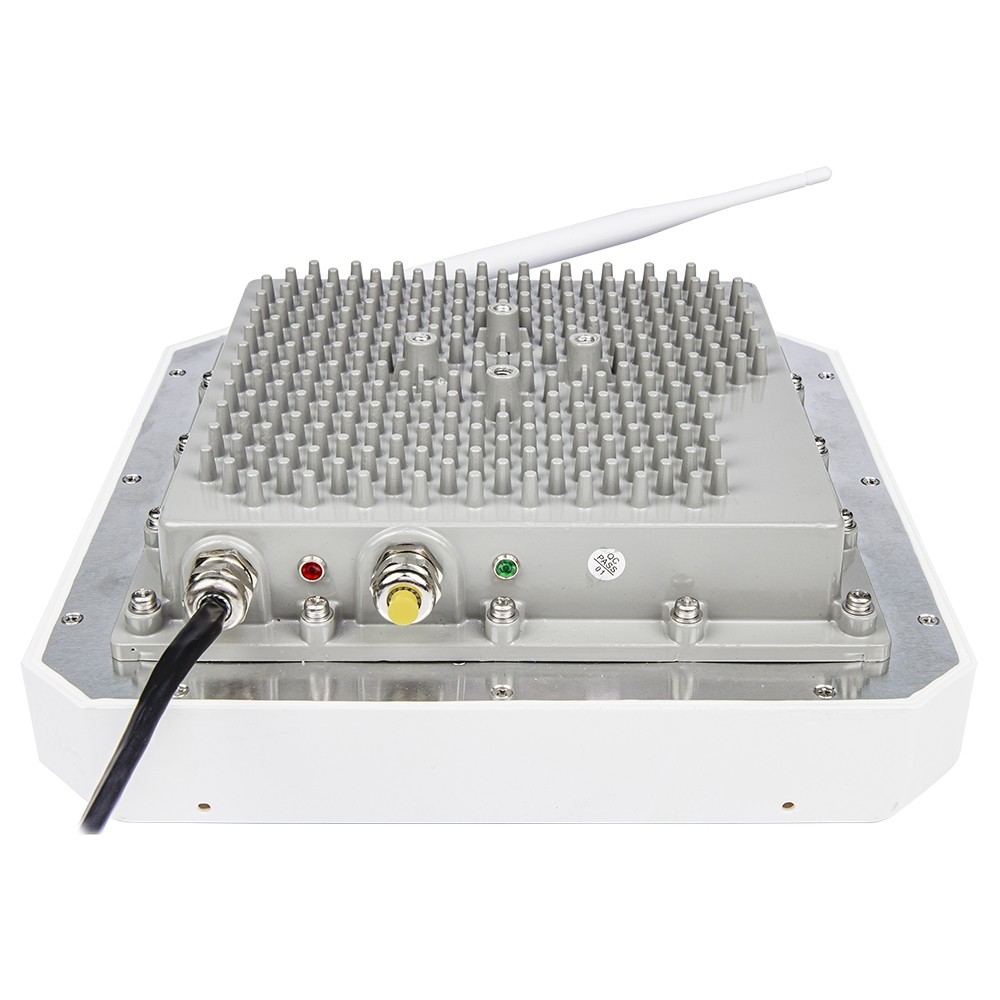

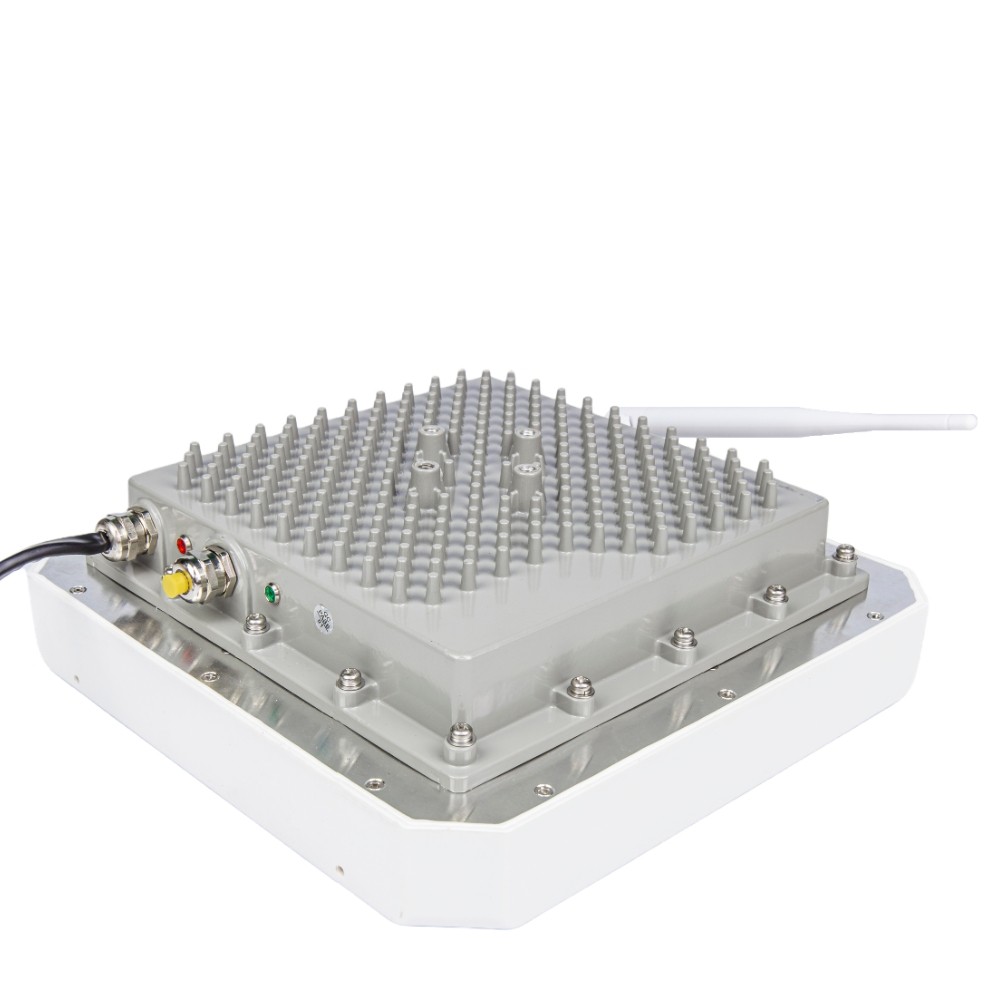

Heat dissipation mode
External heat sink air cooling
Read distance
Approximately 40 meter
PHYSICAL CHARACTERISTICS
Dimension H x W x L:
255mm*255mm*85mm(Length x Width x Height)
Weight
800g

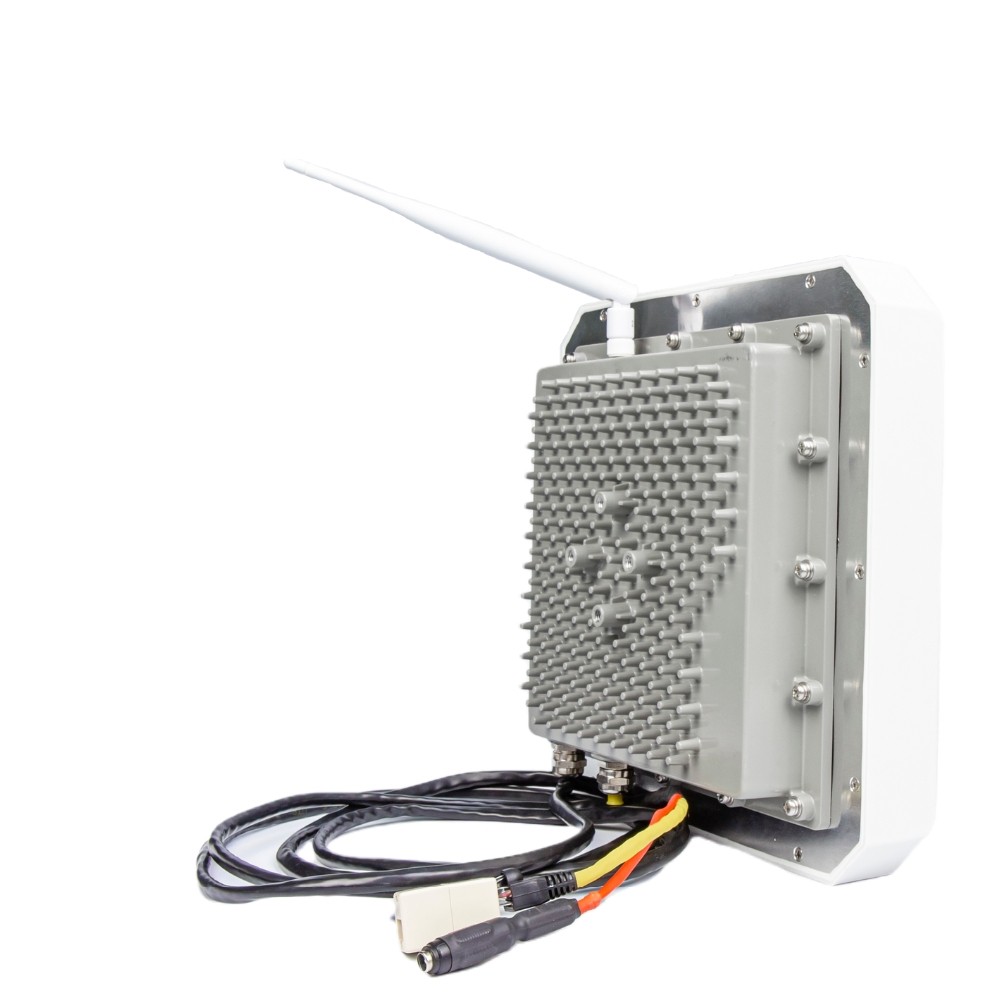

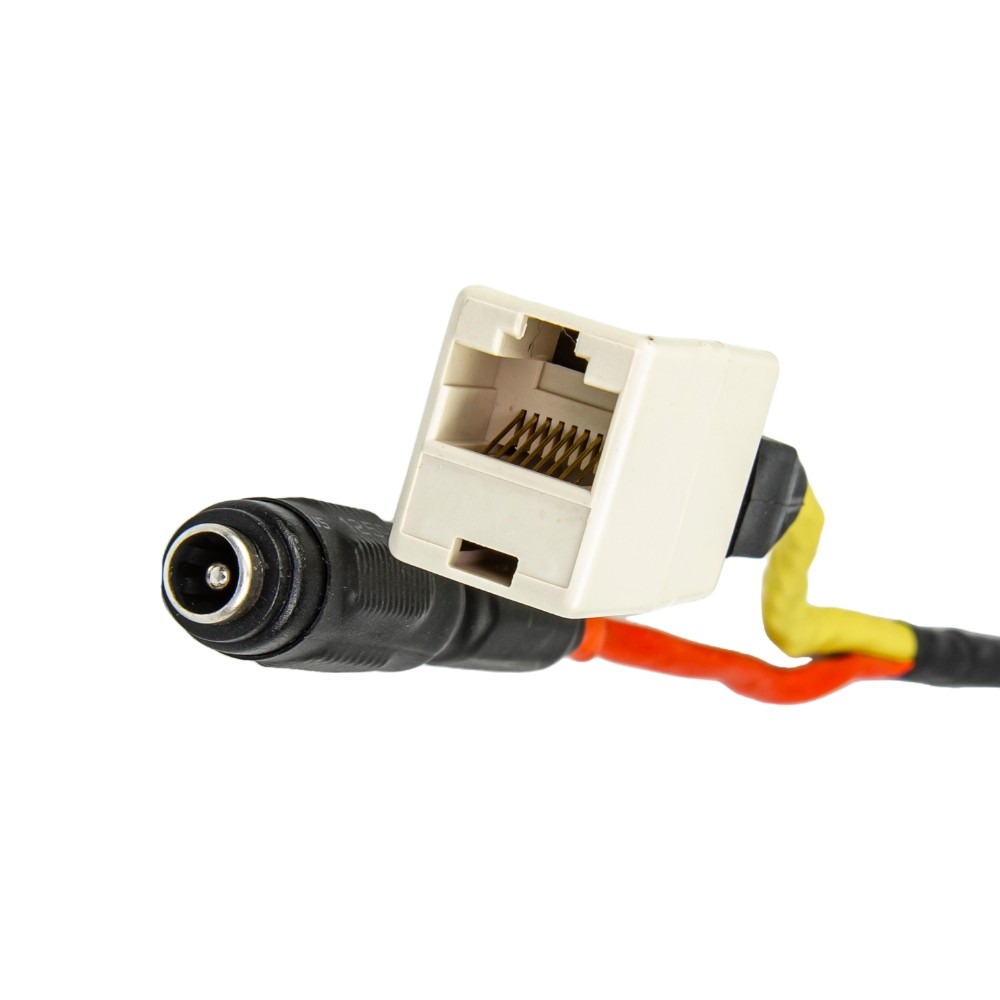

Cable
Standard 1M straight
Material
ABS + PC
POWER PARAMETER
Working voltage
3.7V – 5 V
Working current
1.2A +/-10%
Output power
0 – 33dBm
Standby state current
<50mA
Sleep state current
<100uA
ENVIRONMENTAL PARAMETER
Operating Temperature
-20℃~+55℃
Working Humidity
< 95% ( + 25 °C)
