Product description
Applications:
Logistics and warehouse management: goods flow, warehouse management and the flowing management of mail, parcels and luggage
Intelligent parking management: parking management and automatic charges
Productive lines management: production process fixed identify
Product counterfeit-proof inspection: using memory’s write-protect functions inside tags and identifying with true-false of products
Other fields: used widely in club management, libraries, students schools, consumption management, time management, dinner management and pool management
Frequency Range |
865-868MHZ/902-928MHZ |
|
Band Width |
26(MHz) |
|
Gain |
5(dBi)/ 8(dBi)/ 12(dBi) |
|
Beam Width E-Plane |
68(°) |
|
Beam Width H-Plane |
65(°) |
|
VSWR |
≤1.3/ ≤1.4 |
|
Polarization |
Circular polarization |
|
Max Power |
100(W) |
|
Impedance |
50(Ω) |
|
F/B |
>20(dB)/ >25(dB) |
|
Connector |
N-female/User specified |
|
Dimensions |
225*180*40mm/ 225*225*30mm/ 450*450*45mm |
|
Package |
250*190*60mm/ 390*290*110mm/ 600*480*110mm (Paper Carton) |
|
Radome Material |
ABS |
|
Weight |
1.5kg/ 1.8kg/ 4.5kg (with bracket) |

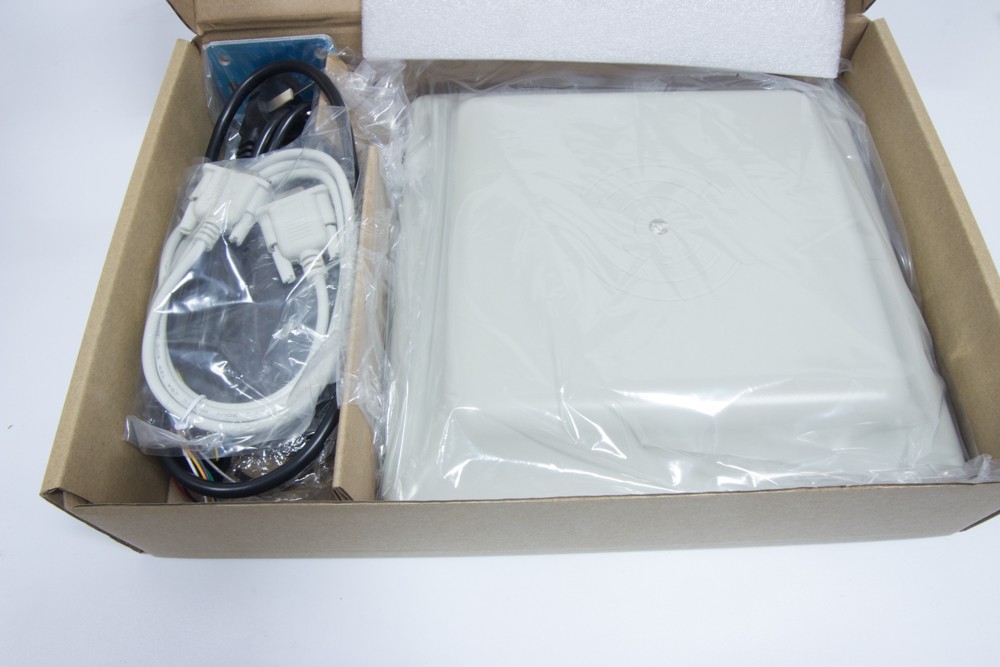

Packaging & Delivery
Packaging Details:
standard export package
Delivery Detail:
about 3-12 working day(depending on order quantity)
