UHF Handheld Reader RFID DATA COLLECTOR 902-925Mhz SR5036 for Factory inventory,vehicle management

Product Code: SR5036

Availability: In stock

UHF Handheld Reader RFID DATA COLLECTOR 902-925Mhz SR5036 for Factory inventory,vehicle management
$616.00

Ships to: Worldwide FREE SHIPPING

OR
Share |
Description

Details

SPECIFICATIONS

PHYSICAL CHARACTERISTICS

Dimension

170mm(H)x85mm(W)x28mm(D)±2 mm

Weight

Net Weight :370g (including battery&wrist strap)

Display

Gorilla Glass 3 9H 5.0 in. TFT-LCD(720x1280)touch  screen with backlight

Backlight

LED backlight

Keypads

3 TP keys, 6 function keys, 4 side buttons

Expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 4500mAh

PERFORMANCE CHARACTERSTICS

CPU

Quad A53 1.3GHz quad-core

Operating System

Android 7.0

Storage

2GB RAM, 16GB ROM, Micro SD(max 128GB expansion)

USER ENVIRONMENT

Operating Temp.

-20℃ to 50℃

Storage Temp.

-20℃ to 70℃

Humidity

5%RH to 95%RH(non-condensing)

Drop Specifications

5ft./1.5 m drop to concrete across the operating  temperature range

Sealing

IP65, IEC compliance

ESD

±15kv air discharge, ±8kv direct discharge

DEVELOPMENT ENVIRONMENT

SDK

HHW Software Development Kit

Language

Java

Environment

Android Studio or Eclipse

DATA COMMUNICATION

WWAN

TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7, 17, 20;

WCDMA(850/1900/2100MHz);

GSM/GPRS/Edge (850/900/1800/1900MHz);

WLAN

2.4GHz/5.8GHz Dual   Frequency, IEEE 802.11 a/b/g/n/ac

WPAN

Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0

GPS

GPS(embedded A-GPS), accuracy of 5 m

DATA CAPTUER

BARCODE READER

1D barcode

1D laser engine

Symbol SE955

Symbologies

All major 1D barcodes

2D   barcode

2D CMOS Imager

Honeywell N6603

Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR   code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK   Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

COLOR CAMERA

Resolution

8.0 megapixel

Lens

Auto-focus with LED flash

RFID   READER

RFID LF

Frequency

125KHz/134.2KHz(FDX-B/HDX)

Protocol

ISO 11784&11785

R/W Range

2cm to 10 cm

RFID HF

Frequency

13.56MHz

Protocol

ISO 14443A&15693

R/W Range

2cm to 8cm

RFID UHF

Frequency

865~868MHz or 920~925MHz

Protocol

EPC C1 GEN2/ISO 18000-6C

Antenna Gain

Circular antenna(2dBi)

R/W Range

1 m to 2 m(tags and environment dependant)

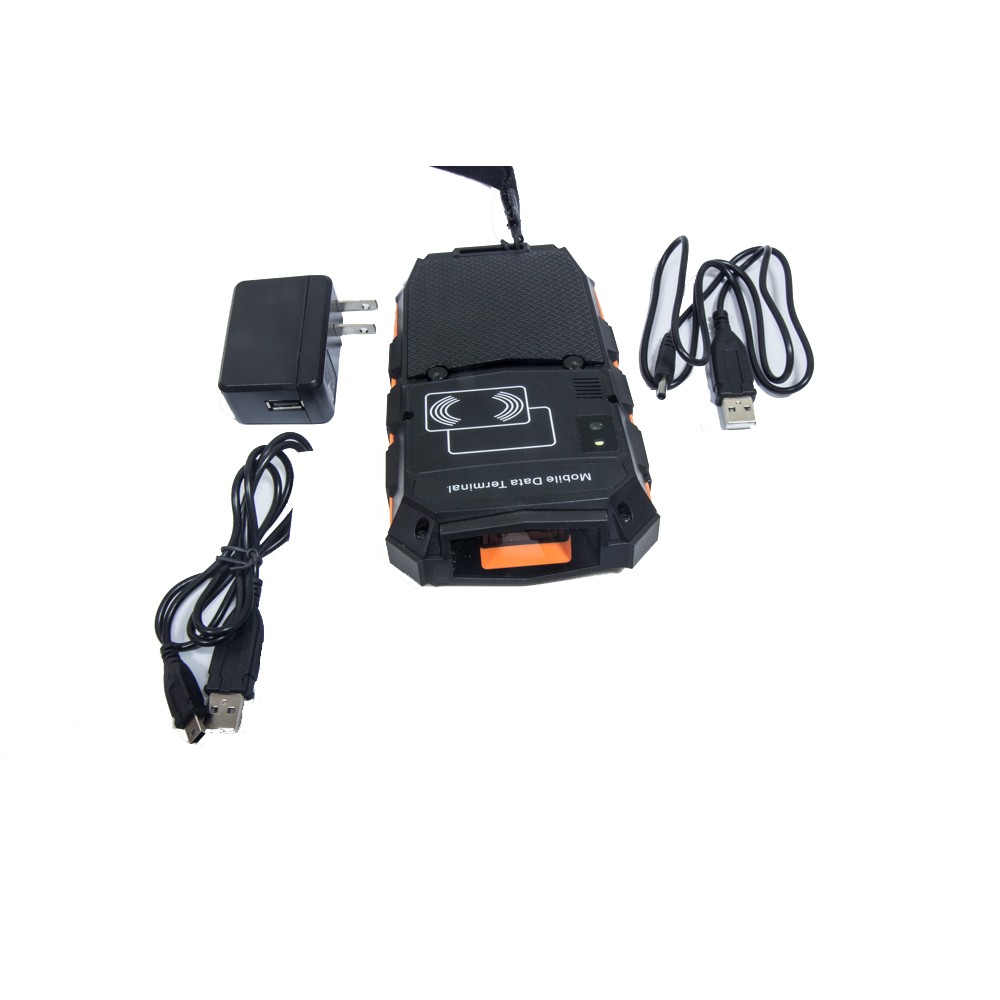

ACCESSORIES

Standard

1xPower Supply; 1xLithium Polymer   Battery; 1xDC charging cable; 1xUSB data cable
