New R783 UHF Integrated Reader Outdoor IP67 9dbi Antenna USB RS232/RS485/Wiegand Output 8m Long Range UHF RFID Reader
Place of Origin:Guangdong China (Mainland)
Brand Name:Yanzeo
Model Number: R783
Type: Other
Name: RFID Reader
Specification
Support card: ISO 18000-6C (EPC GEN2)
Interface: WG26/WG34/WG98, RS232/RS485, USB, TCP
Card reading distance: 0-5m (high power 0-8m)
Working frequency: 915Mhz
Working current: 9V 100mA
Size: 240mm×240mm×50mm
Weight: 1.2kg
The UHF RFID Middle Range Reader is a high performance UHF integrated reader .
Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.
It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Interface
Red:+9V
Black:GND
Green:RS232 TXD
White:RS232 RXD
Brown:GND
Yellow:Wiegand DATA0
Grey:Trigger input(TTL level
) Blue:Wiegand DATA1
Purple:RS485 R+
Orange:RS485 R-
* Effective distance depends on antenna, tag and environment.

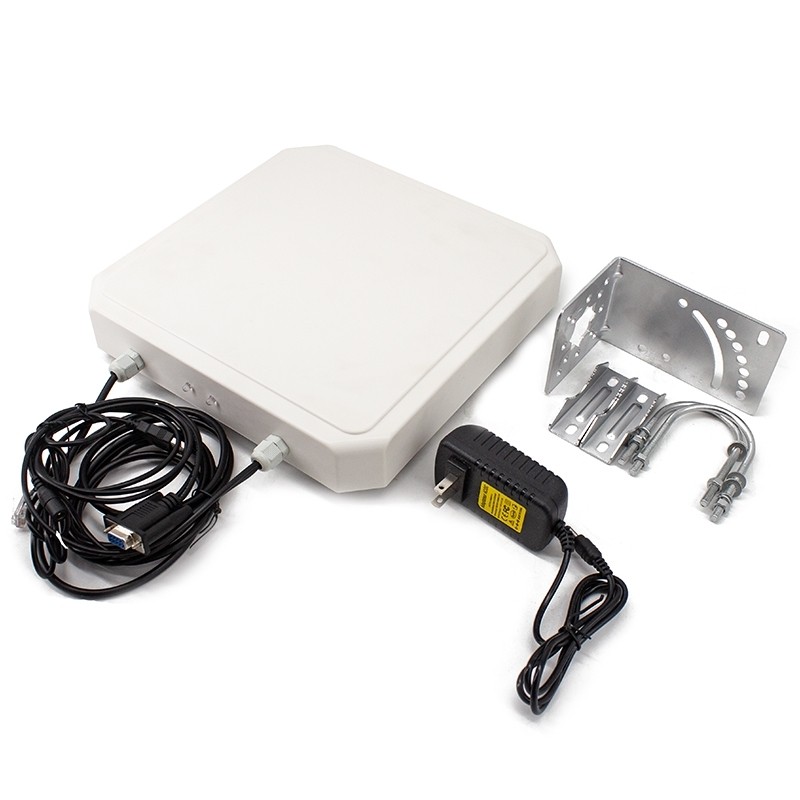

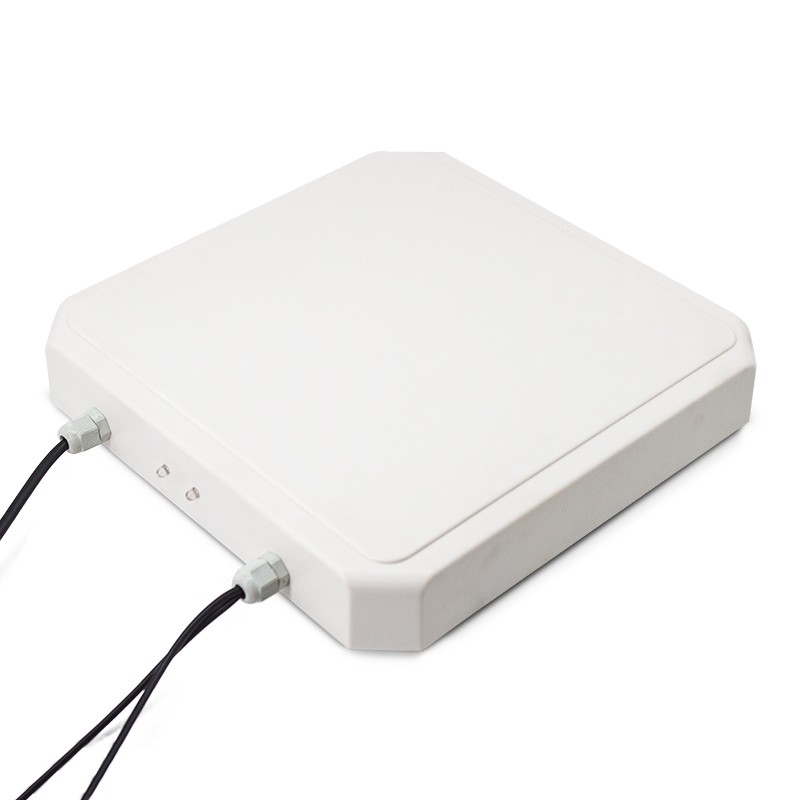

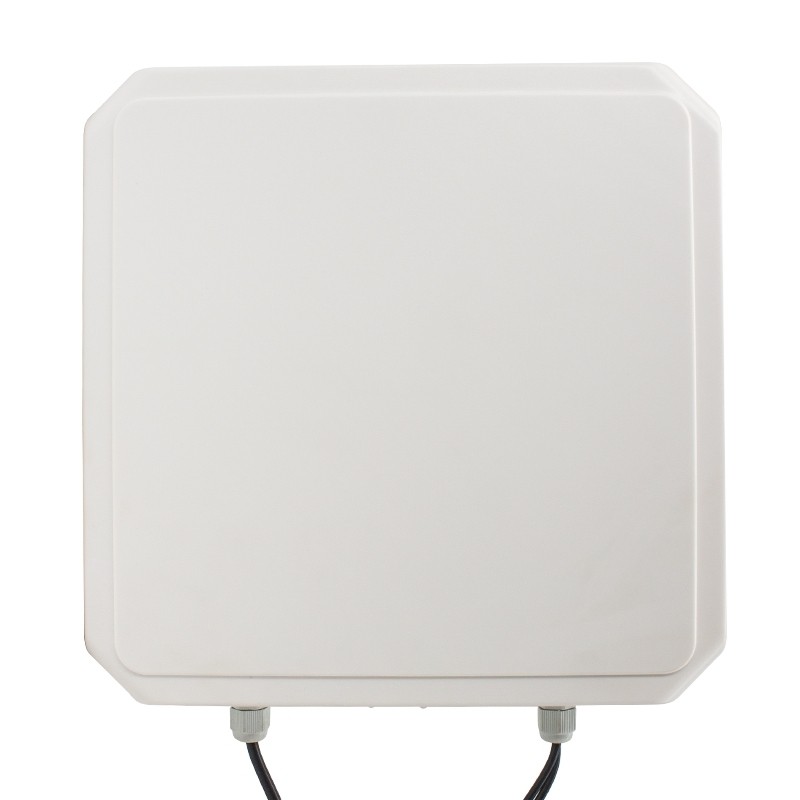

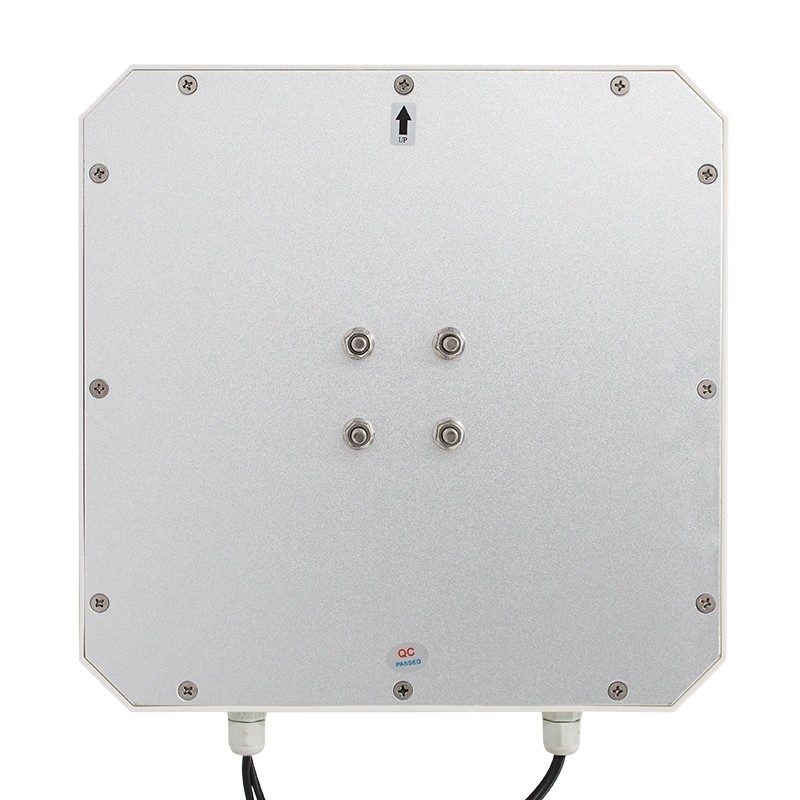

Pictures
Interfaces(RS232,RS485,Wiegand26/34)
Power Supply
: SYMBOL :VCC
MIN :8
TYP: 9
MAX:12
UNIT:V
Current Dissipation:
SYMBOL:IC
TYP: 350
MAX:650
UNIT:mA
Frequency :
SYMBOL :FREQ
MIN :860
TYP: 865~868 ,902~928
MAX:960
UNIT:m-HZ
Effective Distance:
SYMBOL :DIS
MIN :300
TYP: 500
MAX:600
UNIT:CM
9662 read labels, we tested the longest distance is 6 meters, label size and dimensions of the different antennas will affect the reading distance.
Welcome more experienced counterparts to exchange UHFRFID!
Please feel free to contact us if there is any questions!
