R786 RFID Reader 12m Long Range RJ45 USB RS232/RS485/Wiegand Output Outdoor IP67 10dbi Antenna Integrated UHF Reader

The UHF RFID Middle Range Reader is a high performance UHF integrated reader .
Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.
It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Interface
Red:+9V
Black:GND
Green:RS232 TXD
White:RS232 RXD
Brown:GND
Yellow:Wiegand DATA0
Grey:Trigger input（TTL level
） Blue:Wiegand DATA1
Purple:RS485 R+
Orange:RS485 R-
* Effective distance depends on antenna, tag and environment.

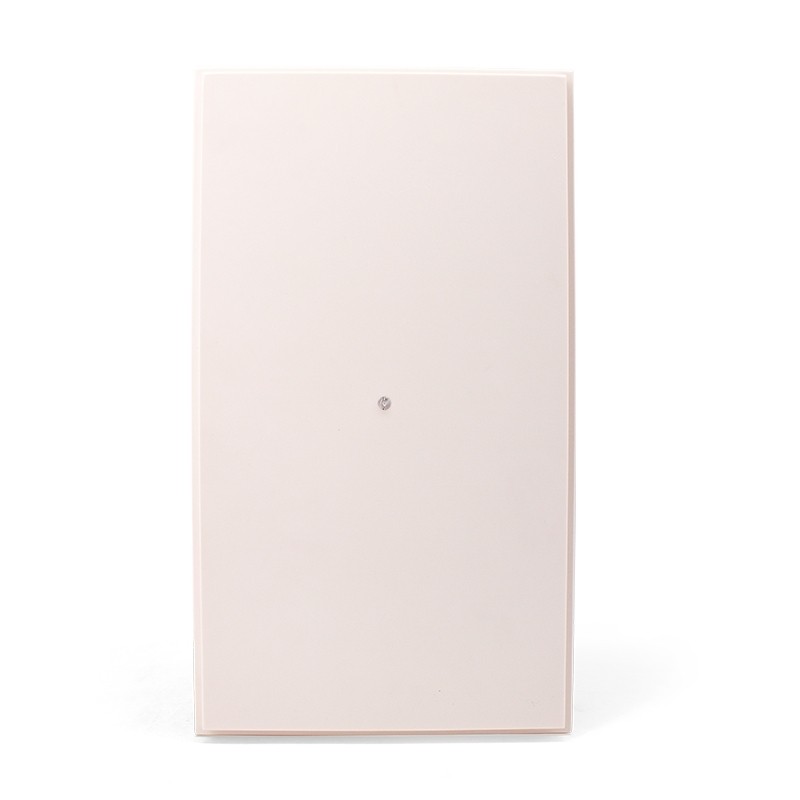

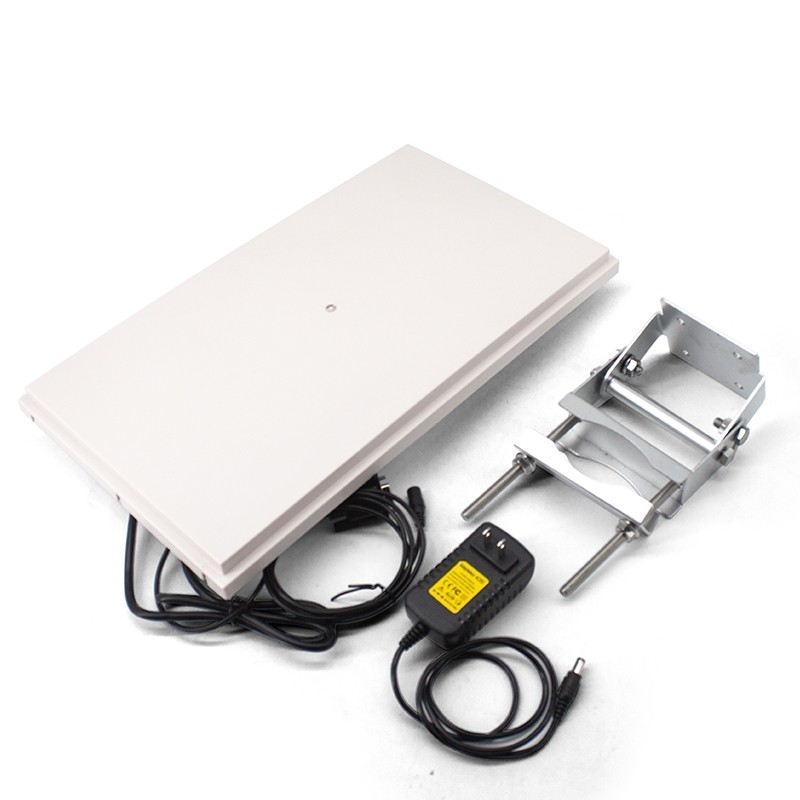

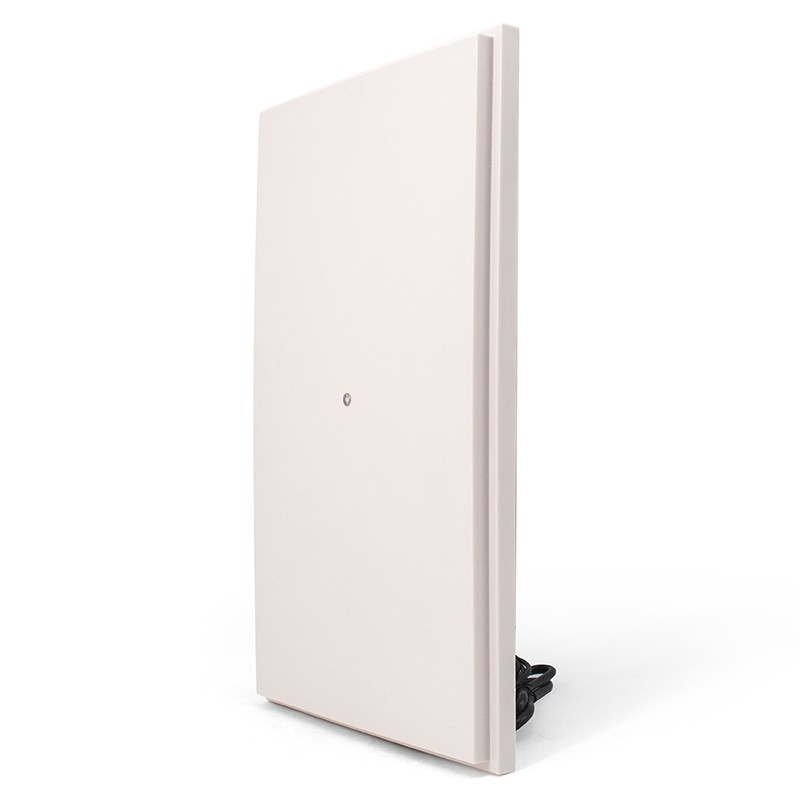

Pictures
Interfaces(RS232,RS485,Wiegand26/34)

Power Supply
: SYMBOL :VCC
MIN :8
TYP: 9
MAX:12
UNIT:V

Current Dissipation:
SYMBOL:IC
TYP: 350
MAX:650
UNIT:mA

Frequency :
SYMBOL :FREQ
MIN :860
TYP: 865~868 ,902~928
MAX:960
UNIT:m-HZ

Effective Distance:
SYMBOL :DIS
MIN :300
TYP: 500
MAX:600
UNIT:CM

9662 read labels, we tested the longest distance is 12 meters, label size and dimensions of the different antennas will affect the reading distance.
Welcome more experienced counterparts to exchange UHFRFID!
