SI804:4G
Yanzeo SI804 is a high-performance linear polarized antenna UHF reader compatible with ISO 18000-6C and ISO 18000-6B standards. Its operating frequency is 902MHz ~ 928MHz, excellent read and write performance, especially suitable for reading high-speed mobile label. The reader meets a variety of application needs, especially for community, parking vehicle management, highway non-stop charging and logistics management.
Application areas:
Logistics and warehousing management: item flow and warehousing management and flow management of mail, parcels, transport baggage, etc.;
Intelligent parking lot management: parking lot management and charging automation;
Production line management: identification of the production process fixed point;
Product anti-counterfeiting detection: use the in-tag memory write protection function to identify the authenticity of the product;
Other areas: in the club management, library, student status, consumption management, attendance management, dining management, pool management and other systems have been widely used.
Product Features:
The power is small, the reading and writing distance is stable and reliable;
Fast data read rate;
Label wakeup recognition;
Multi-zone multi-label reading;
Directional tag data writing;
Multi-protocol compatibility;
Waterproof design;
Yanzeo SI802 Passive UHF Reader Technical Parameters
Functional Characteristics |
|
Working Frequency: |
National standard (920 ~ 925MHz) |
American Standard (902 ~ 928MHz) |
|
Other multinational frequency standards (customized) |
|
Label Agreement: |
ISO18000-6C (EPC GEN2) |
ISO18000-6B |
|
Frequency Hopping Mode: |
Broadband frequency hopping (FHSS) or fixed frequency, which can be set by software; |
Antenna Parameters: |
12dBi linear polarized antenna (built-in) |
Output Power: |
0dBm ~ 30dBm (software adjustable) |
Read And Write Distance: |
Maximum distance of reading tags: 25m (related to factors such as transmit power, antenna type, tag type and application environment) |
Write tag maximum distance: 6m (related to factors such as transmit power, antenna type, tag type and application environment) |
|
Working Mode: |
Active mode |
Passive mode |
|
Answer mode (not recommended) |
|
External Interface |
|
Power Interface: |
DC +12V |

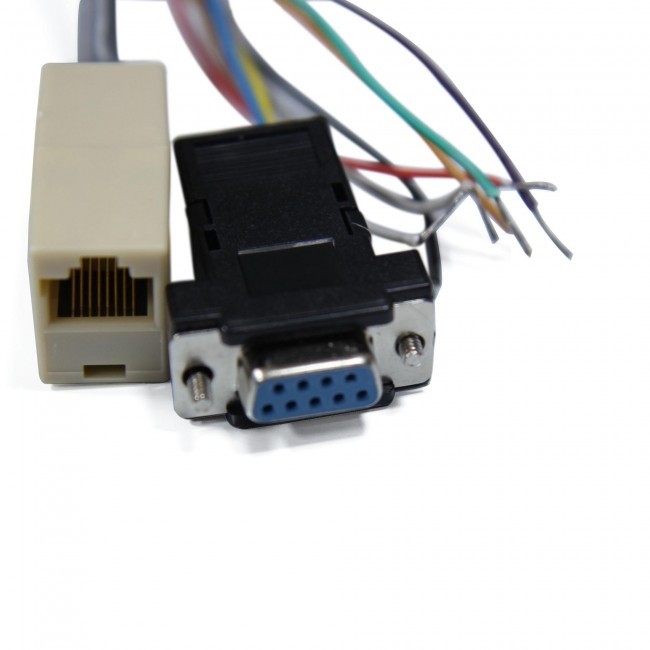

Communication Interface: |
RS-232 interface, RS-485 interface |
Wiegand interface: support Wiegand 26, Wiegand 34 |
|
10/100M Ethernet interface |
|
WIFI,GPRS(customized) |
|
Trigger Interface: |
1 trigger level input |
GPIO Interface: |
2 GPIO outputs (requires customization) |
Working Environment |
|
Working Temperature: |
-20℃~60℃ |
Storage Temperature: |
-40℃~85℃ |
Physical Parameter |
|

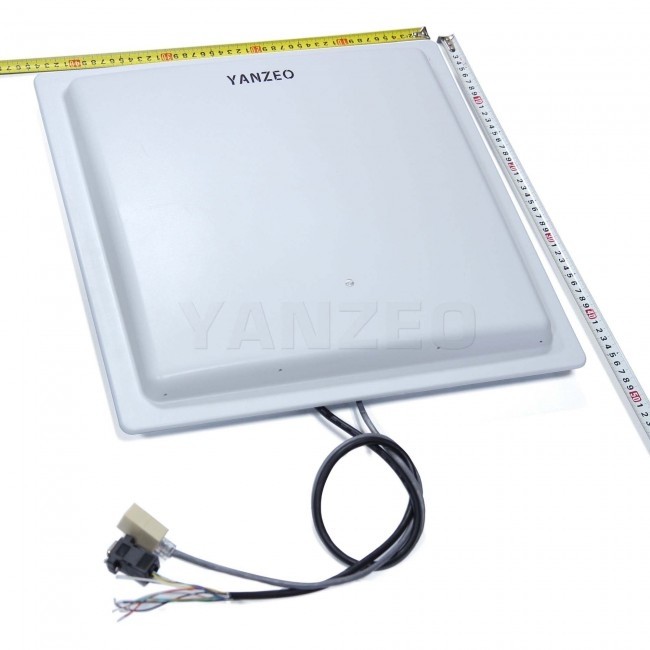

Size: |
450mm×450mm×120mm |
Weight: |
5Kg |

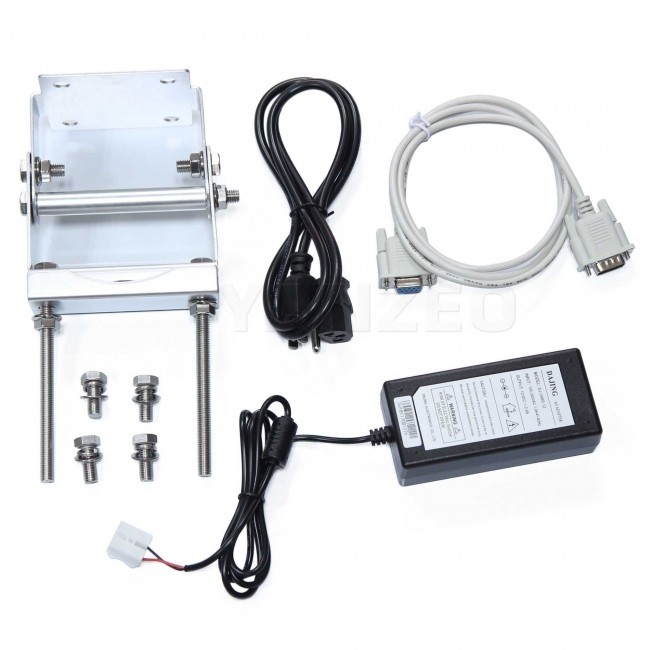

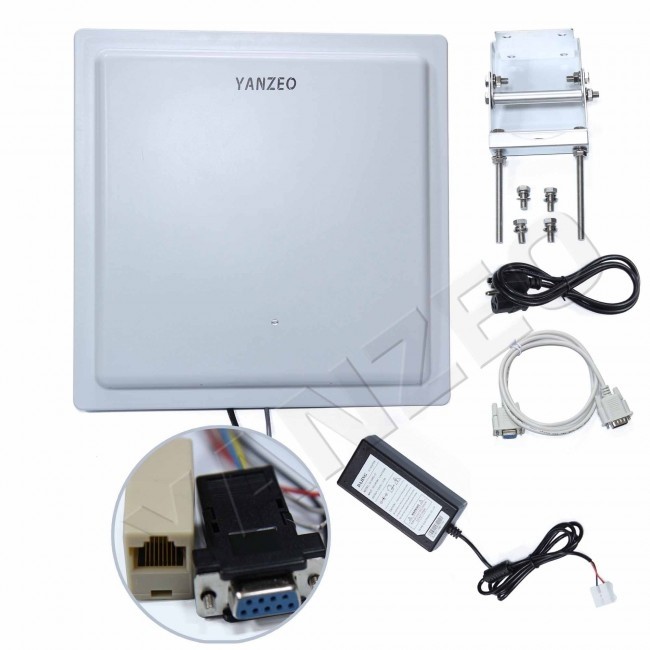

Annex |
|
Power Adapter: |
AC 110 ~ 220V / DC +12V |
Power Cable: |
Equipped |
RS-232 Signal Cable: |
Equipped |

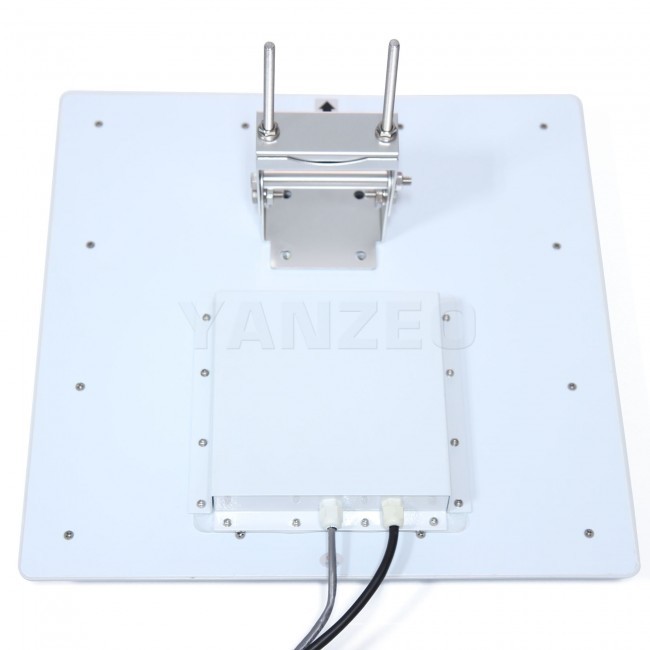

Mounting Bracket: |
Pole mounting fixture |
Development Kit: |
Provide VS, Android SDK |
